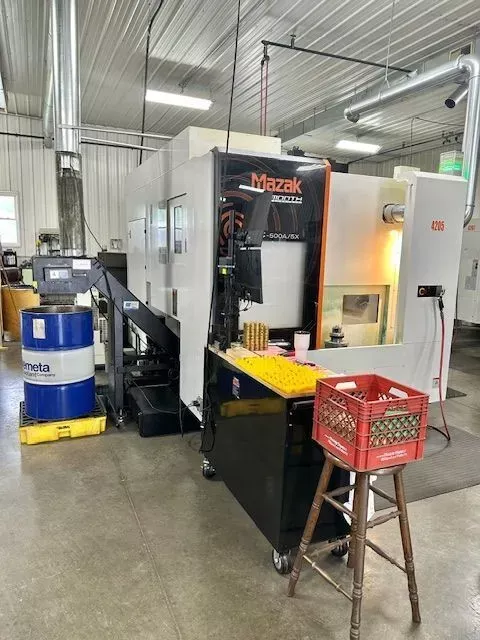

Mazak VC 500A/5X TWIN PALLET 5 Axis

MAZAK VC 500A/5X TWIN PALLET
2018

number of tables 2
table weight capacity 440 lb
spindle power 15 hp
spindle nose to table 4.5"
spindle speed 20000 rpm
spindle taper 40
x-axis travel 21.85"
y-axis travel 19.88"
z-axis travel 20.07"
b-axis travel ±110 degrees
c-axis travel 360 degrees
rapid traverse x-axis 1181 in/min
rapid traverse y-axis 1181 in/min
rapid traverse z-axis 1181 in/min
automatic tool changer 60 tools
maximum tool diameter 4.92"
maximum tool length 10.23"
maximum tool weight 17 lb
machine weight 14330 lb
control mazak mazatrol smooth x cnc color control
memory capacity 8 mb
automatic 2-pallet changer
hsk pallet work holding configuration
auto pecking cycle
smooth set and inspect
5-axis machining package
synchronized tapping
g00 slope constant
chip conveyor
eia/iso compatibility
high smoothing control
eia 3d compensation
rotation function
geometric function
scaling function
external data i/o
high speed machining
shape compensation
threading function
inverse time feed
dynamic compensation
3d coordinate rotation
polar coordinate input
comparison stop
automatic atlm
spline function
g54.1 coordinate system
synchronized mill tap
rotary axis shape compensation
variable 600 sets
cylindrical and polar coordinate interpolation
simultaneous 5-axis
5-axis tool compensation
5-axis spline
eia helical tapping
pattern cycles
tilted workplane
nurbs interpolation
second auxiliary functions
work position error compensation
tool center point control
program memory expansion
coolant through spindle 213 psi
handheld mpg
advanced ethernet/ip
dual probing kit rmp 600 and rts-aa with eia inspection plus
seamless corner control
variable acceleration control
super high speed machining
automatic operation iss
sub plate size 19.69" mountable on both pallets
machine installed new 3/2020
