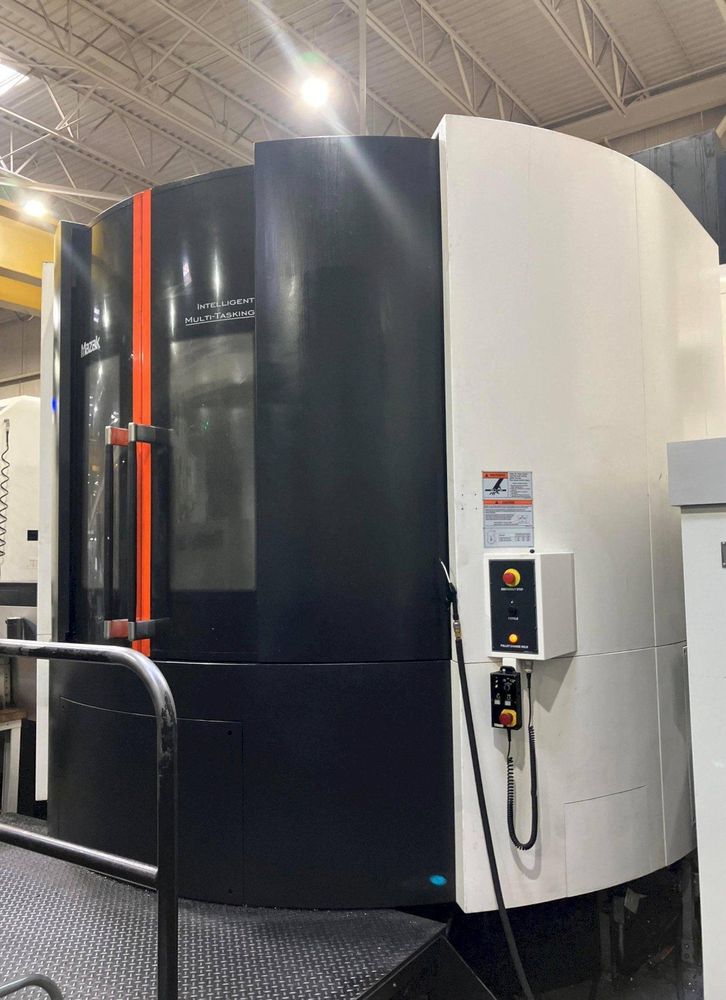

Mazak Vortex e-1060V/8 5 Axis

X Axis Travel 78.32"
Y Axis Travel 41.73"
Z Axis Travel 52.95"
B Axis Indexing Range -30° to +120°
C Axis Index 360 Degrees (0.0001 Deg Increments)

CNC Control Mazatrol Matrix 2
High-Pressure Coolant Thru Spindle
Renishaw Probing
Pallet Size 39.4" × 39.4"
Max Workpiece Weight 4,784 lbs
Spindle Taper CAT 50
Milling Spindle Speed 10,000 rpm
Milling Spindle Motor 50 hp
Turning Spindle Speed 500 rpm
Turning Spindle Motor 50 hp
ATC Capacity 120
Mazatrol Matrix 2 CNC Conversational Control w/15" Display
Mazak Superflow V8M Unit
Manual Pulse Generator (Detachable)
Two Pallet Changer
Automatic Tool Presetter
ConSep Chip Conveyor
Coolant Washdown at Operator and Pallet Load Stations
Heidenhein Linear Scales X, Y, Z
Spindle Air Blow
Power Indexing at Work Load Station
Renishaw NC4 Laser Tool Measurement
Renishaw H/V OMP60 Probe
Hydraulic Pressure Interlock
Auto Power On/Off/Warm-up
8MB Program Storage
Prep for LAN and Modem
Mill Spindle Synchronous Tapping
Background Tool Path Check
Tool Breakage Detection
Adaptive Feedrate Control
Tool Life Monitoring
Renishaw Advanced Probe Macros / Inspection Plus
3D Coordinate Rotation G68.2
EIA Simultaneous 5-Axis
Tool Tip Point Control 5-Axis
Simultaneous 5-Axis Tool Radius Compensation
G00 Slope Constant
2D Software Shape Continuous
Shape Continuous Rotary Axis
Inch / Metric Conversion
Cylindrical G07
Polar Coordinate G12
Mazacc-3D High Speed Software Package
High Smoothing Control
Additional EIA / ISO Function
All Available Manuals
CAT50 Tooling Package
