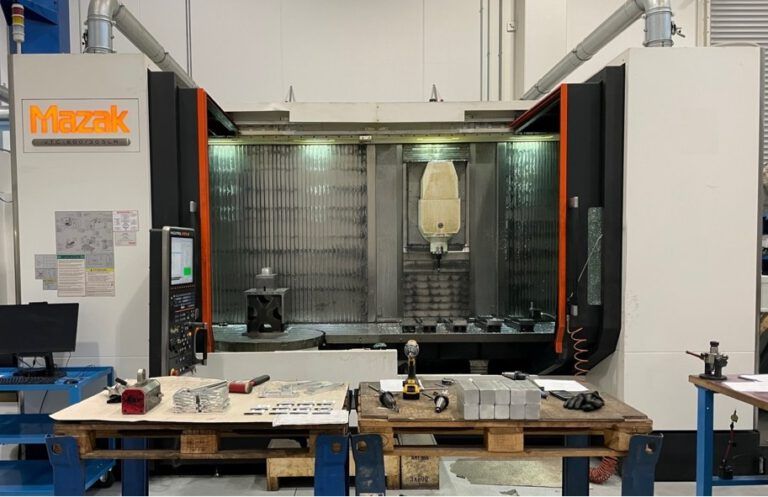

Mazak VTC-800/30SLR 5 Axis

MAZAK VTC-800/30SLR
2016

Control Mazatrol Matrix 2
X-axis travel 3,000 mm
Y-axis travel 800 mm
Z-axis travel 720 mm
B-axis rotation 220°
C-axis rotation 360°
Table size 3,500 mm × 820 mm
X/Y/Z rapid traverse 50 m/min
B-axis speed 50 rpm
C-axis speed 25 rpm
Spindle power 35 kW
Max spindle speed 18,000 rpm
Spindle taper SK-40 DIN69781
Tool magazine capacity 155 pockets
Mazak Tool Hive System
Air blow-out of the workpiece
High pressure through spindle 15 bar
Mazak Monitoring B (Renishaw RMP60)
Dual tool length measurement
Table center partition
NC rotary table diameter 1,000 mm
NC rotary table 360,000 positions
Swarf conveyor
5-axis simultaneous machining package
Auto pecking cycle with load detection
Cylindrical interpolation
G00 slope constant
Synchronized MillTapp
Installed December 2017
Availability from July/August 2025
