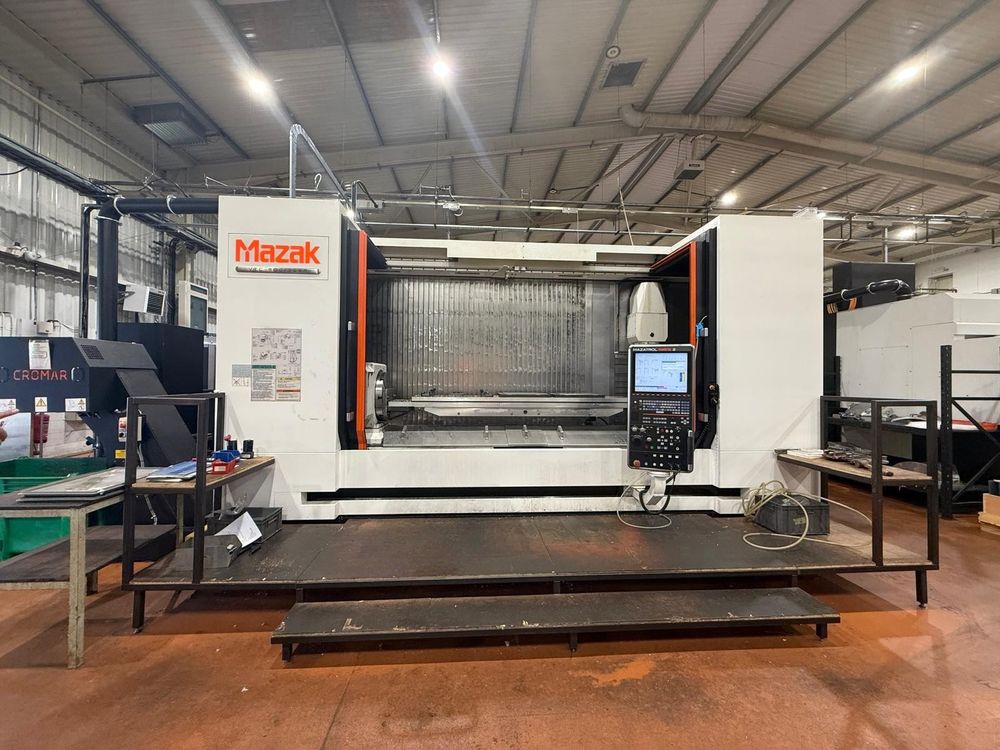

Mazak VTC-800/30SR 4 Axis

X Axis travel 3000 mm
Y Axis travel 800 mm
Z Axis travel 720 mm
Spindle head rotation (B-axis) ±110°
Control MAZATROL Matrix
Table size 3500 x 820 mm
T-slot width 18 mm
Number of T-slots 7
Table loading capacity 2500 kg
Spindle nose to table top minimum 140 mm
Spindle nose to table top maximum 860 mm
Rapid traverse X/Y/Z 50 m/min / 50 m/min / 50 m/min
Spindle taper 7/24 taper, No 40
Spindle speed maximum 18,000 rpm
Spindle speed minimum 35 rpm
Main spindle motor output 26.0 kW
Tool storage capacity 48 tools
Tool selection MAZATROL memory random mode
Tool shank CAT-40 / MAS BT-40
Maximum tool diameter with adjacent tool 80 mm
Maximum tool diameter without adjacent tool 130 mm
Maximum tool weight 8 kg
Total magazine maximum weight 150 kg
Maximum tool length 350 mm
Tool change time 4.7 seconds
Optional manual pulse generator
Optional additional work light
Optional signal tower (yellow)
Optional end of machining cycle indicated by revolving beacon
Workpiece air blast
High-pressure coolant through spindle 15 kg
Preparation for RMP60 probe
Radio probe including inspection plus software
Table centre partition
2 x Sankyo NC rotary table foot mounted
Synchronised NC rotary tables
Machine dimensions L x W x H 5250 x 4046 x 3355 mm
Machine weight 16,300 kg
