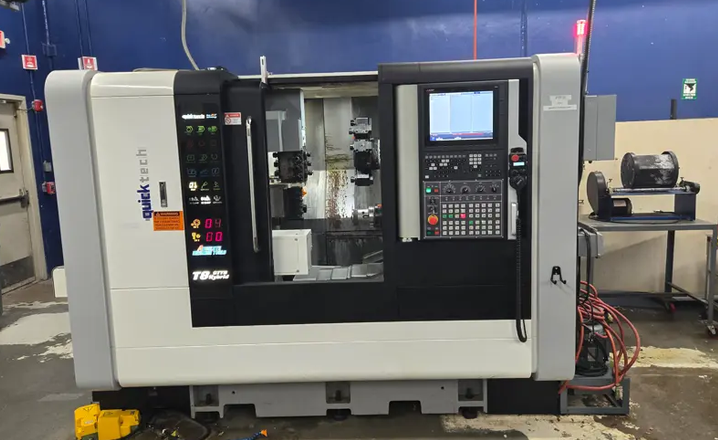

Mitsubishi M800 CNC 4000 rpm QUICKTECH T8 HYBRID 9 Axis

X1 axis
Y1 axis
Z1 axis
X2 axis
Y2 axis
B axis: 360°
C1 axis
C2 axis
9 axes
Control: Mitsubishi M800 CNC
Twin opposed spindles
Sub spindle
True Y-axis machining
Simultaneous machining
Flexible Duo System
C-axis interpolation on both spindles
Rigid tapping
Automatic lubrication
Bar feeder interface
Maximum turning diameter: 11.8 in
Maximum turning length: 13.8 in
Swing over bed: 19.7 in
Distance between centers: 20 in
Main bar capacity: 2.56 in
Sub spindle bar capacity: 1.26 in
Main spindle nose: A2-6
Main spindle speed: 4000 rpm
Main spindle motor: 15 HP
Sub spindle nose: A2-5
Sub spindle speed: 4000 rpm
Sub spindle motor: 7.5 HP
Live milling
Main chuck: 8 in 3-jaw or 60 mm collet
Collet chucks
3 live toolholders
Static tool holders
