Mori Seiki Control system MSX-850 IV 3000 min⁻¹ NL 3000MC/1250 3 Axis

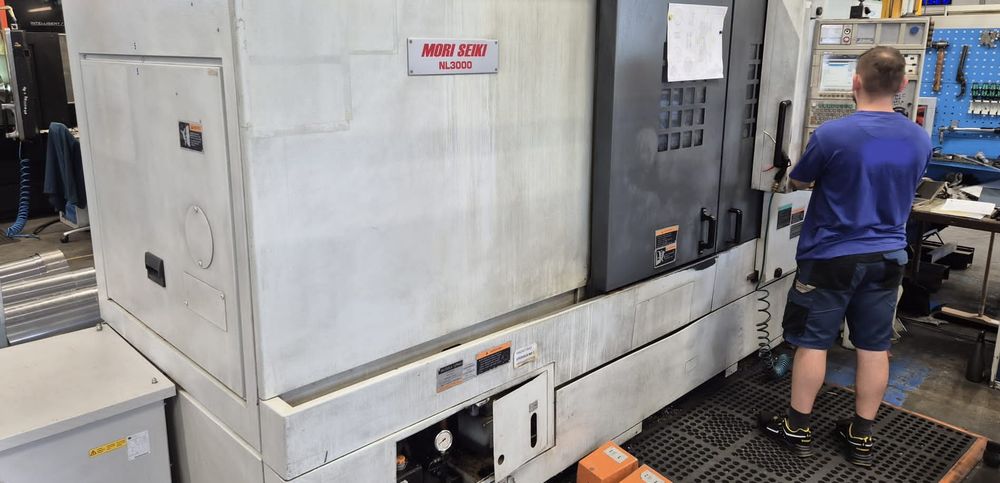

MORI SEIKI NL 3000MC/1250
2010

Very good technical condition
Fully functional
Under power and testable
Control system MSX-850 IV
C-axis
Driven tools
NC tailstock, fully programmable with separate motor
Chip conveyor LNS (approx. 1.5 years old)
Chuck 300 mm with 90 mm bar capacity
Turning diameter 420–500 mm
Swing over bed 995 mm
Swing over carriage 825 mm
Max turning length 1260 mm
Max bar diameter 90 mm
X-axis travel 280 mm
Z-axis travel 1370 mm
Max spindle speed 3000 min⁻¹
Spindle nose A2-8
Spindle bore 105 mm
Number of tool positions 10
Max C-axis speed 400 min⁻¹
Spindle motor power (30 min / continuous) 30 / 25 kW
Installed power 38.7 kVA
Coolant tank capacity 370 l
Machine height 2390 mm
Machine width x depth 4532 x 2291 mm
Machine weight 7600 kg
