Mori Seiki MSC 501 6000 min⁻¹ ZL 203 SMC 2 Axis

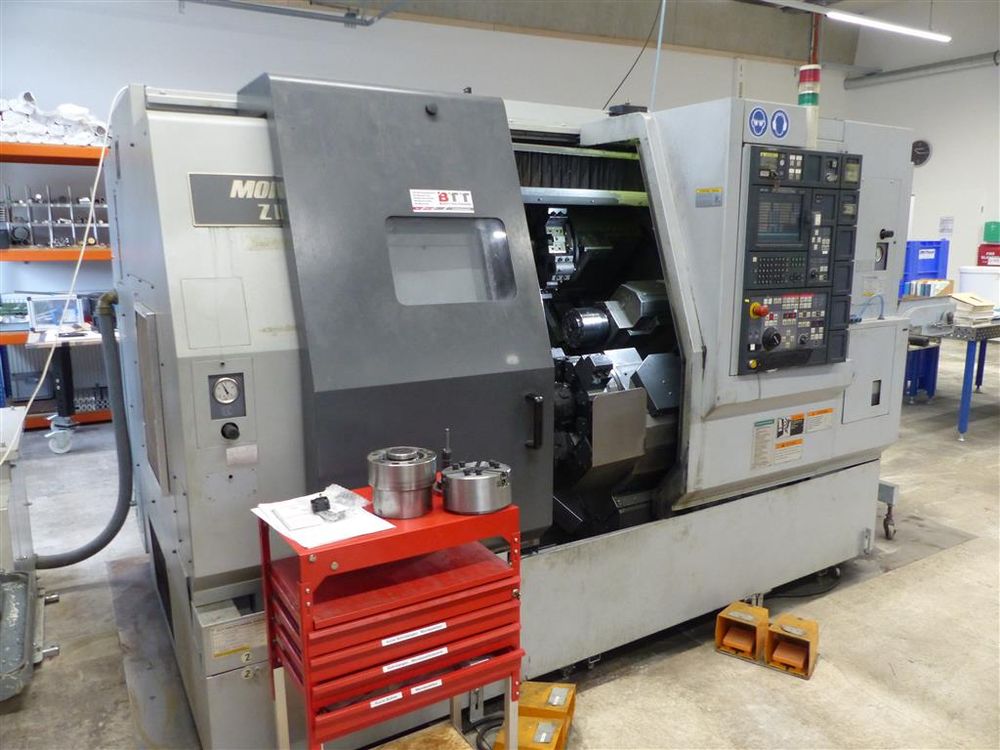

MORI SEIKI ZL 203 SMC
2003

Turning diameter 180 mm
Turning length 424 mm
Control MSC 501
Swing diameter max. over bed cover 680 mm
Swing diameter over bed slide 510 mm
Max turning diameter Rev. / turret 1: 390 mm
Max turning diameter Rev. / turret 2: 294 mm
Bar material diameter 65 mm
Spindle bore 73 mm
Sub spindle bore 43 mm
Spindle speed 40 - 4000 / 60 - 6000 min⁻¹
Turning speed range - milling 3000 min⁻¹
Number of tool positions turret 1: 12 rotating
Number of tool positions turret 2: 8
Rapid traverse X-axis 18 m/min
Rapid traverse Z-axis 24 m/min
Total power requirement approx. 38 kW
Machine weight approx. 5.9 t
Machine dimensions approx. 4.0 x 2.2 m
Collet chuck max. ID spindle 1: 65 mm
Collet chuck max. ID spindle 2: 65 mm

High speed turning and milling center
Equipped with 2 turrets (upper turret with rotation tools)
Sub spindle for back side machining
Parts catcher
Bar feeder interface
Chip conveyor right side
Overhead parts catcher
Set of tool holders
Life tooling: 5x radial / 4x axial
Power chuck Kitagawa BB 208 (210 mm)
Three jaw chuck Kitagawa B 206 (150 mm)
