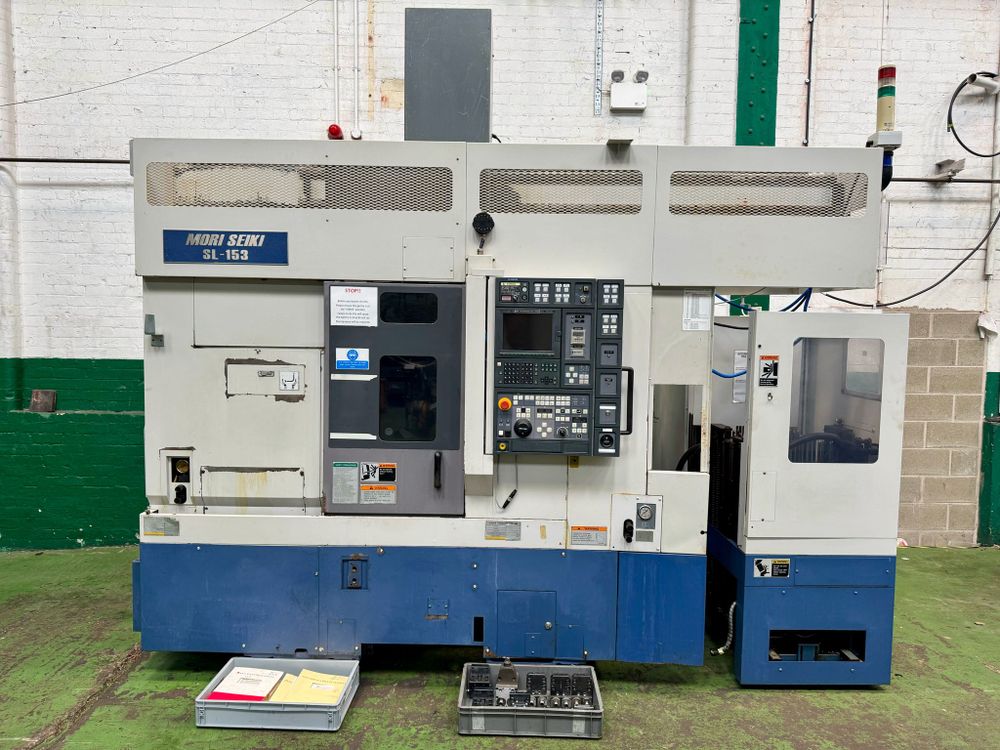

Mori Seiki MSG-501 (Fanuc) 5000 RPM SL-153SY 2001 4 Axis

X Axis Travel: 215 mm
Y Axis Travel: +40/−30 mm
Z Axis Travel: 520 mm
Rapid Traverse: 24 m/min
C Axis Indexing Precision: 0.001°
Control: MSG-501 (Fanuc)
Main Spindle Nose: A2-5
Main Spindle Speed: 5000 RPM
Main Spindle Power: 7.5 kW
Main Bar Capacity: 56 mm
Sub Spindle Nose: A2-5
Sub Spindle Speed: 5000 RPM
Sub Bar Capacity: 43 mm
Driven Tool Speed: 3000 RPM
Driven Tool Power: 3.8 kW
Main Turret Stations: 12
Live Turret Stations: 12
Collet Chuck on Main Spindle: HAINBUCH SRANNTOR
3-Jaw Chuck on Sub Spindle: FORKARDT 140 mm
Barfeed: LNS Quick Load Servo II
Gantry Loader
Swarf Conveyor
Component Conveyor
Toolholders
Distance Between Spindles: 750 mm
Overall Dimensions (L×W×H): 5600 × 3048 × 3048 mm
Barfeed Dimensions (L×W×H): 2050 × 1500 × 1450 mm
