Multipress 4-COL-200T Press 200 TONS

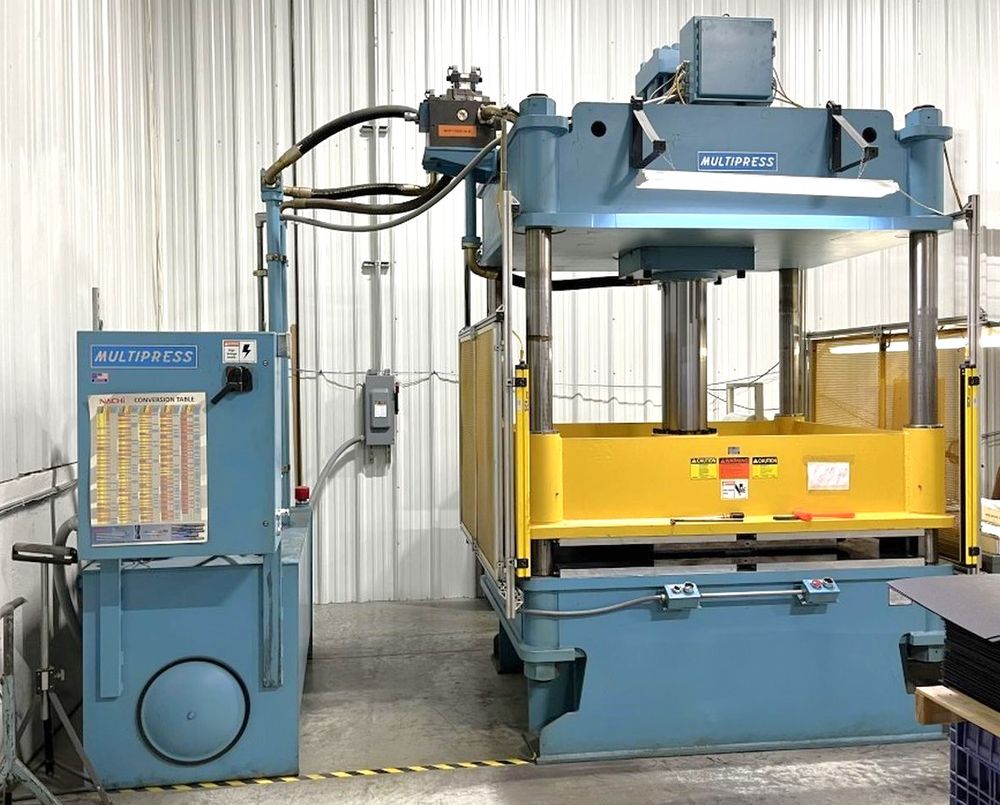

Multipress 4-COL-200T Press
Year: 2002

MAX. CAPACITY 200 TONS
MAX. STROKE APPROX. 26″ TO 30″
MAX. DAYLIGHT APPROX. 32″ TO 36″
OVERALL BED & RAM AREA 85″ X 67″ (RL X FB)
DISTANCE BETWEEN POSTS 72″ X 52″ (RL X FB)
USABLE BED & RAM AREA 72″ X 67″ (RL X FB)
FLOOR TO BED HEIGHT 34″

RAM ROD SIZE 9.5″ DIA.
CYLINDER SIZE 14″ DIA. BORE PISTON
POSTS / 4 COLUMN SIZE 5″ DIA.

PRESS CONTROLS ALLEN-BRADLEY MICROLOGIX 1000 CONTROLLER
HYDRAULIC SYSTEM DENISON HYDRUALICS T6EC-062-003-1R00-B1 PUMP
ELECTRIC MOTOR 40 HP 230/460V-3-60 RELIANCE ELECTRIC MOTOR | 99 / 49.5 AMPS
APPROX. PRESS DIMENSIONS 96″ X 78″ (RL X FB) X 124″ HIGH
APPROX. HYD UNIT DIMENSIONS 98″ X 58″ (RL X FB)

Equipped With
THERMAL TRANSFER PRODUCTS HEAT EXCHANGER MODEL EC-1236-9-F
