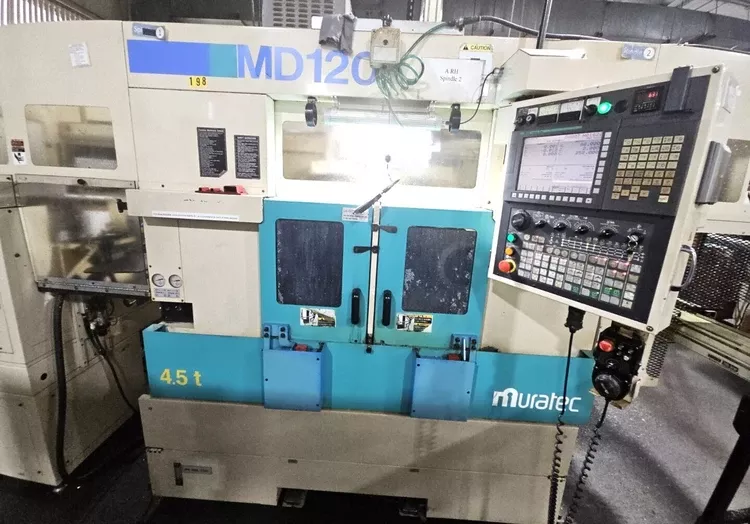

Muratec Fanuc 31i-T CNC 4,500 rpm MD-120G 3 Axis

X-axis travel: 5.12 in
Z-axis travel: 5.71 in
X-axis traverse rate: 945 ipm
Z-axis traverse rate: 945 ipm
Rapid traverse rate (X/Z): 78.78 fpm

C-axis milling and drilling
Twin spindle configuration
Control: Fanuc 31i-T CNC
Live tooling

Swing: 11.61 in
Spindle speed range: 45–4,500 rpm
Spindle motor power: 15 hp
Spindle nose: A2-5
Spindle bore: 1.850 in

Standard chuck size: 8 in
Chuck configuration: (2) 6 in 3-jaw chucks
Number of turret stations: 8
Tool shank size (square): 0.75 in
Tool shank size (round): 1.570 in

Distance between spindles: 13.39 in
Turning diameter: 4.72 in nominal
Turning diameter: 9.44 in max
Turning length: 3.15 in nominal
Turning length: 3.94 in max

Machine weight with loader: 11,800 lbs
Floor space length: 139.37 in
Floor space width: 136.22 in

Overhead gantry loader
14-pallet stocker feeder table
Rear discharge magnetic chip conveyor
Coolant tank and pump
Air blast through spindle
Coolant blast through spindle
Part work location confirmation
Input part re-chucking station
Live tool holders included
Static tool holders included
Manuals included
