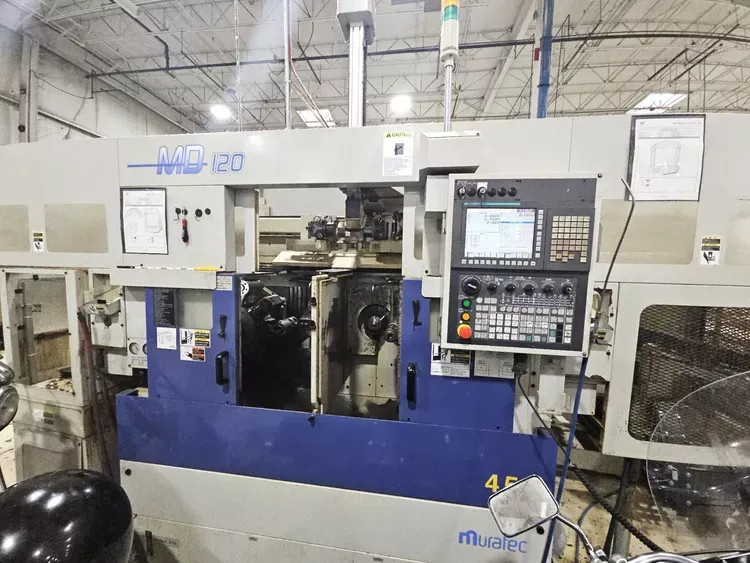

Muratec Fanuc 31i-T CNC 4,500 rpm MD-120G 3 Axis

X-axis travel: 5.12 in
Z-axis travel: 5.71 in
X-axis traverse rate: 945 ipm
Z-axis traverse rate: 945 ipm
Rapid traverse rate (X/Z): 78.78 fpm

C-axis milling and drilling
Twin spindle configuration
Control: Fanuc 31i-T CNC
Live tooling

Swing: 11.61 in
Turning diameter: 4.72 in nominal
Turning diameter: 9.44 in max

Spindle speed range: 45–4,500 rpm
Spindle motor power: 15 hp
Spindle nose: A2-5
Spindle bore: 1.850 in
Sub-spindle: yes

Standard chuck size: 6 in or 8 in
Number of turret stations: 8 per turret
Tool shank size (square): 0.75 in
Tool shank size (round): 1.570 in

Distance between spindles: 13.39 in
Turning length: 3.15 in nominal
Turning length: 3.94 in max

Machine weight with loader: 11,800 lb
Machine floor space length: 139.37 in
Machine floor space width: 136.22 in

Overhead gantry loader
14-pallet stocker feeder table
Rear chip conveyor
Coolant tank and pump
Air blast through chucking center
Coolant blast through chucking center
Part work location confirmation
Live tool drilling units installed
Live tooling included
Static tooling included
Manuals included
