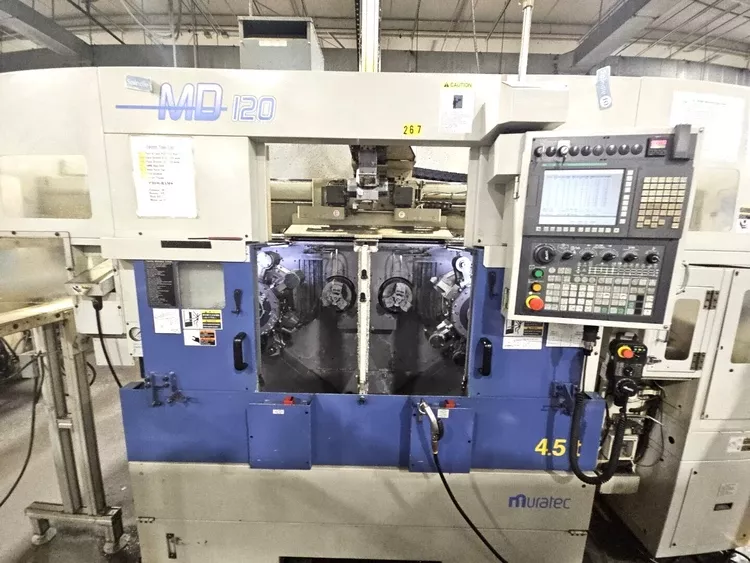

Muratec Fanuc 31i-TB CNC 4,500 rpm MD-120G 2 Axis

X-axis travel: 5.12 in
Z-axis travel: 5.71 in
X-axis rapid traverse: 945 ipm
Z-axis rapid traverse: 945 ipm
Rapid traverse rate (X/Z): 78.78 fpm
C-axis milling and drilling capability
Control: Fanuc 31i-TB CNC
Live tooling
Twin spindle configuration
Bar capacity:
Swing: 11.61 in
Spindle speed range: 45–4,500 rpm
Spindle motor power: 15 hp
Spindle nose: A2-5
Spindle bore: 1.850 in
Milling capability: live tool drilling units
Chuck size: 8 in standard
Chuck type: 3-jaw wedge type
Number of turret stations: 8
Tool shank size: 0.75 in square
Tool shank size (round): 1.570 in
Distance between spindles: 13.39 in
Turning diameter: 4.72 in nominal
Turning diameter: 9.44 in max
Turning length: 3.15 in nominal
Turning length: 3.94 in max
Machine weight (with loader): 11,800 lbs
Floor space length: 139.37 in
Floor space width: 136.22 in

Overhead gantry loader
Input stocker feeder table
Output part conveyor
Rear chip conveyor
Coolant tank and pump
Air blast through chuck
Coolant blast through chuck
Part confirmation system
Re-chucking station
Eight live tool drilling units
Live and static tool holders
Manuals included
