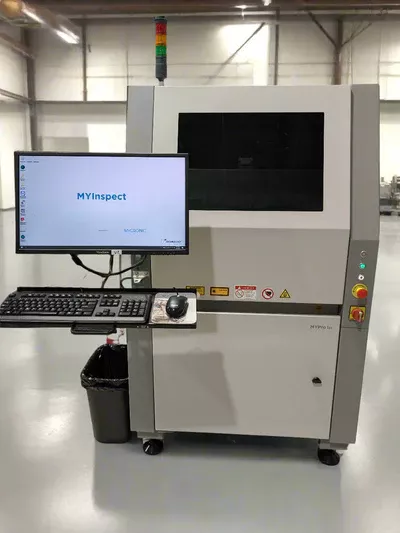

Mycronic MYPRO I50 3D AOI

Windows 10 OS
Precision XY gantry.
High-speed linear motors with closed loop high resolution linear encoders.
Automatic conveyor width adjustment for boards up to
533 mm x 609 mm [21" x 24"].
Maximum PCB weight 3Kg.
High-resolution & high speed digital camera with 3232 x 2372 pixels -
with 4.75µm inspection resolution.
Custom design ultra low distortion Telecentric lens.
Powered by SPECTRO: Vi TECHNOLOGY's proprietary Illumination
System with white axial and Tri-color peripheral high intensity LED.
Red Laser with 2 angular cameras.
PC Intel ® CoreI7 8-Core, 32 Gb RAM, with 24" LCD monitor, MYWizard
programming software using Windows 10 operating system including:
Exhaustive test coverage: presence/absence,
X/Y/Theta position, IPC-Overhang, polarity, OCV, solder joints,
lifted leads, tilt, bridges, foreign materials, height,
machine learning algorithms for fiducials, polarity,
package association, and new package creation, escape tracker,
Standard conveyor height: 860 - 960mm /optional 900 - 1000mm

Includes:
1D / 2D Internal Reader (1D (Barcode) & 2D (DataMatrix and QR codes)
ID codes acquisition using the internal camera of the AOI machine)
