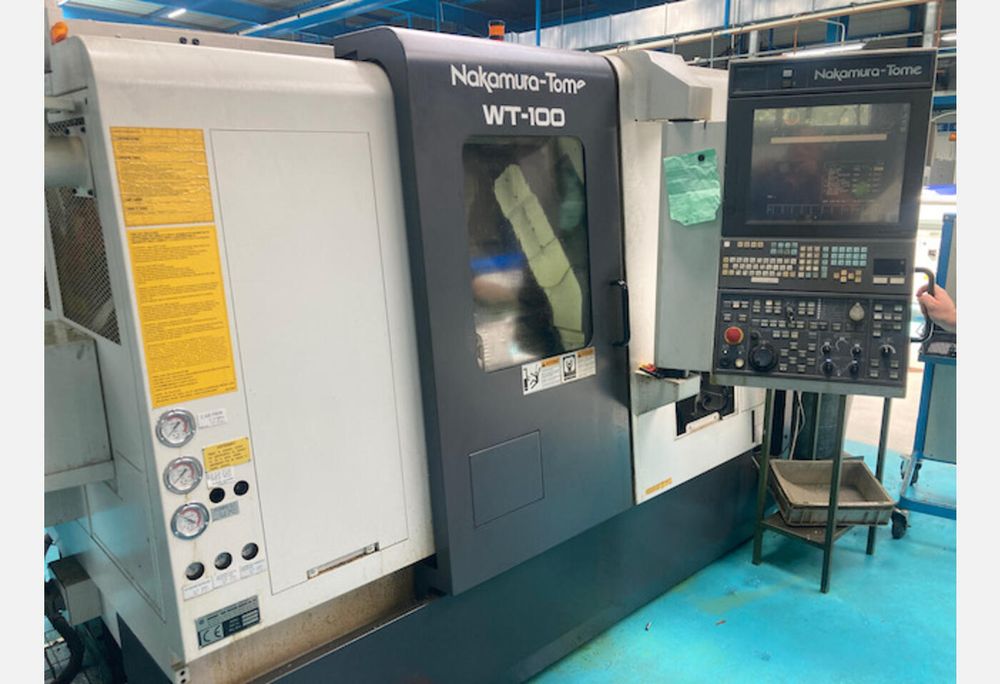

Nakamura FANUC CNC 6000 rpm WT 100 2 Axis

NAKAMURA WT 100
Year: 09/2015

MAIN SPINDLE
- Maximum bar diameter: 42 mm
- Maximum turning diameter: 190 mm
- Maximum turning length: 503 mm
- Spindle nose: A2-5
- Spindle speed: 6000 rpm
- Spindle power: 11/7.5 kW
- C axis: 360° indexing increment 0.001°

SUB SPINDLE
- Spindle nose: A2-5
- Spindle speed: 6000 rpm
- Spindle power: 11/7.5 kW
- C axis: 360° indexing increment 0.001°

UPPER TURRET
- Number of positions: 12
- Number of motorized positions: 12
- Axis strokes : X: 135 mm Y: +/-31mm - Z: 503mm

LOWER TURRET
- Number of positions: 12
- Number of motorized positions: 12
- Axis strokes: X: 135mm - Z: 503mm

Equipped with:
- 1 FANUC CNC
- 1 Set of fixed and rotating tool holders
- 1 CNC parts collector
- 1 Chip conveyor
- 1 Barloader IEMCA BOSS 552 HD 32L
Machine having worked with whole oil
