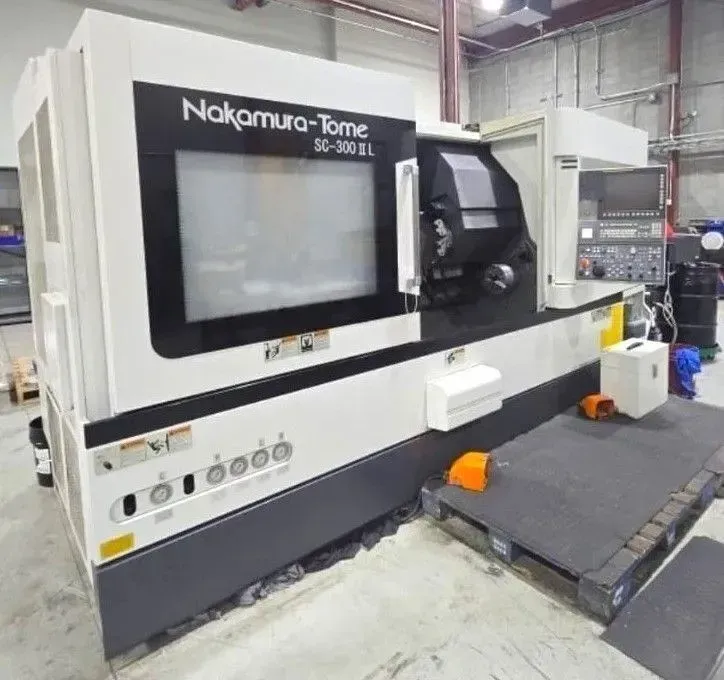

Nakamura FANUC 0I-TF CNC COLOR CONTROL 3,500 RPM SC300II LMSY 5 Axis

X1-AXIS TRAVEL 8.76"
Z1-AXIS TRAVEL 44.69"
Y1-AXIS TRAVEL 3.2"
W-AXIS TRAVEL 47.75"
C-AXIS INDEXING 1 0.00
C-AXIS INDEXING 2 0.00

FANUC 0I-TF CNC COLOR CONTROL
ALL AVAILABLE MANUALS
CHIP CONVEYOR
BAR FEED INTERFACE
AUTO PARTS CATCHER TYPE
HELICAL INTERPOLATION
TOOL SETTER MAIN AND SUB SPINDLE
3 AXIAL MILLING HOLDERS
4 RADIAL MILLING HOLDERS
R&D FACILITY MACHINE
2000 HOURS ONLY

BAR CAPACITY 3.5"
SWING OVER BED 22.05"
TURNING DIAMETER 13.7"
TURNING LENGTH 43.31"
DISTANCE BETWEEN SPINDLES 51.57"

MAIN SPINDLE SPEED 3,500 RPM
MAIN SPINDLE MOTOR 30 HP
MAIN SPINDLE NOSE A2-8
MAIN SPINDLE BORE 4.1"

SUB SPINDLE SPEED 5,000 RPM
SUB SPINDLE MOTOR 20 HP
SUB SPINDLE NOSE A2-5

ROTARY TOOL SPEED 6,000 RPM
ROTARY TOOL MOTOR 10 HP

RAPID TRAVERSE X1-AXIS 629 IPM
RAPID TRAVERSE Z1-AXIS 786 IPM
RAPID TRAVERSE Y1-AXIS 394 IPM

12" MAIN CHUCK
8" SUB CHUCK
12 STATION TURRET

MACHINE WEIGHT 25,000 LBS
