Nakamura Tome CNC CONTROL 5,000 rpm WTW-150 2 Axis

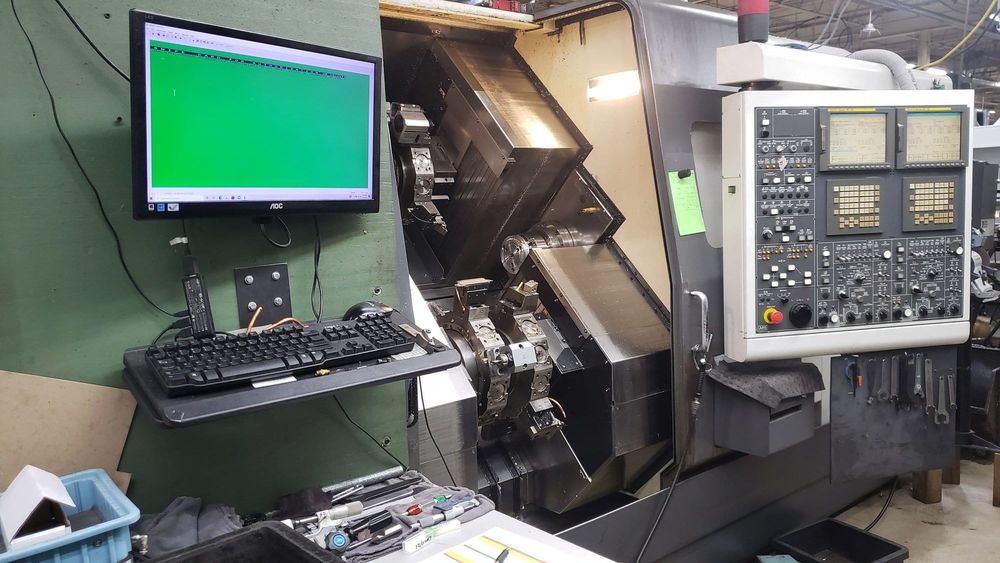

NAKAMURA-TOME WTW-150
2003

Maximum turning diameter: 310 mm
Maximum turning length: 255 mm
Distance between spindle noses: 1,070 mm max / 195 mm min
Bar capacity: 65 mm / 51 mm
Chuck size: 6"
Upper turret X travel: 207.5 mm
Upper turret Z travel: 300 mm
Upper turret B2 travel: 875 mm
Upper turret Y travel: 207.5 mm / 300 mm
Lower turret X travel: ±30 mm × 2
Lower turret XZ travel: ±30 mm × 2
Left spindle speed: 4,000 rpm
Right spindle speed: 5,000 rpm
Left spindle motor: 15/11 kW or optional 7.5/5.5 kW
Right spindle motor: 15/11 kW or optional 7.5/5.5 kW
Upper turret count: 2
Upper turret speed: 6,000 rpm
Upper turret motor: 3.7/2.2 kW
Upper turret torque: 23.6/14 Nm
Upper turret type: Dodecagonal
Upper turret index positions: 24
Upper turret driven-tool stations: 12
Upper turret drive system: Individual rotation
Lower turret count: 2
Lower turret speed: 6,000 rpm
Lower turret motor: 3.7/2.2 kW
Lower turret torque: 23.6/14 Nm
Lower turret type: Dodecagonal
Lower turret index positions: 24
Lower turret driven-tool stations: 12
Lower turret drive system: Individual rotation
Machine footprint (L×W×H): 3,850 mm × 2,330 mm × 2,320 mm

Y axis on upper turrets
Live tooling
No chucks included
Standard package of static tool holders
Fanuc control
