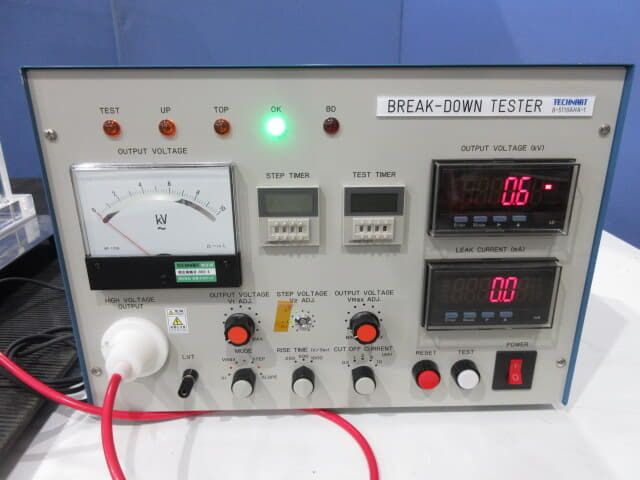

Nippon B-5110AHA-1 Test Equipment

• Breaking Current Meter: 3-digit digital meter
• Maximum Current Display: 10.0 mA
• Current Sampling Rate: 20 times per second
• External Width: 435 mm
• External Depth: 430 mm
• External Height: 300 mm
• Weight: Approximately 35 kg
• Oil-Immersed Electrode Device Model: T-2030
• Top Electrode: 20 mm sphere
• Upper Electrode: 25 mm cylinder
• Lower Electrode: 25 mm with auxiliary plate
• Electrode Usage: Oil-immersed or air electrode
• Cover Material: Acrylic
• Cover Thickness: Approximately 10 mm
• Base Material: Stainless steel
• Base Thickness: Approximately 3 mm
• Oil Tank Material: Acrylic
• Oil Tank Internal Width: 200 mm
• Oil Tank Internal Depth: 200 mm
• Oil Tank Internal Height: 140 mm
• Electrode Device External Width: 750 mm
• Electrode Device External Depth: 500 mm
• Electrode Device External Height: 760 mm
• Electrode Device Weight: Approximately 35 kg
