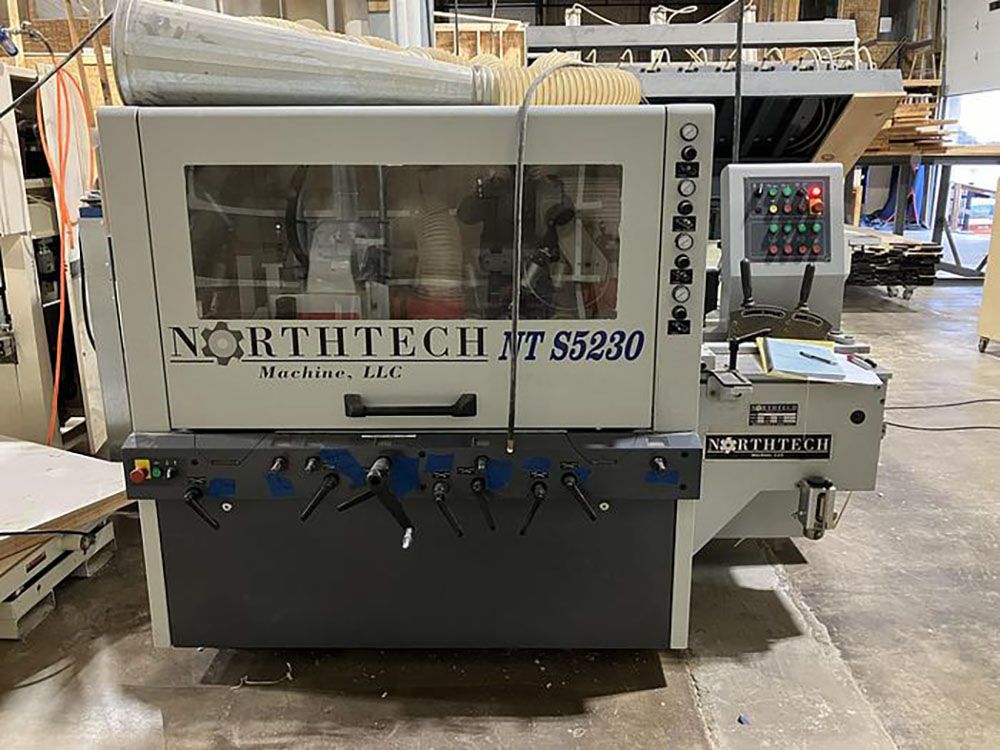

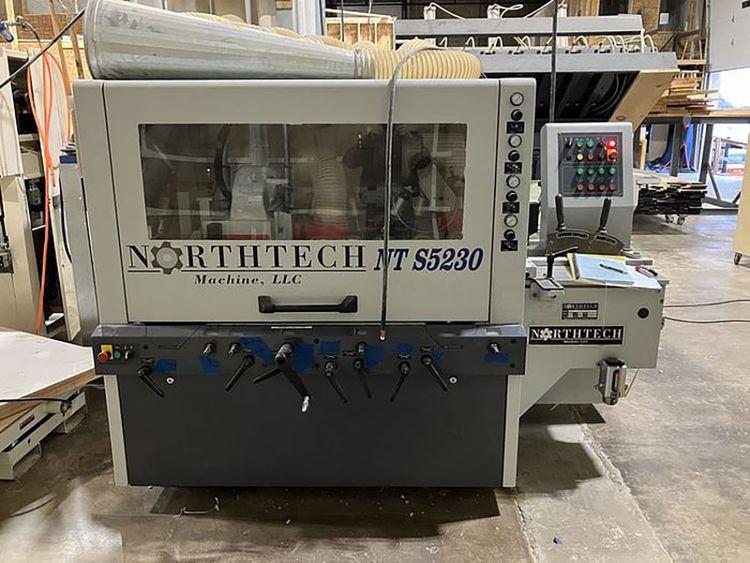

Northtech NT-S5230

Like New Moulder coming out of a shop dispersal.
Comes with some tooling and heads.

The NT S5230 is a compact heavy duty 5 head moulder with large moulder capacity .
The 6″ x 9″ capacity moulder with a 5 head double bottom configuration provides more flexibility
for a larger selection of profiles while maintaining a compact footprint.
Features such as chrome table, Siko mechanical readouts, bed oiler, and 40mm 6000RPM spindles are standard.
Many upgradeable options for operator convenience makes the S series is an excellent option when space matters.

SPINDLE ARRANGEMENT:
• 1st - Bottom horizontal: 7.5HP
• 2nd & 3rd Left/Right vertical: 15HP
• 4th - Top horizontal: 7.5HP
• 5th - Bottom horizontal: 7.5HP
• Spindle speed: 6000RPM
• Spindle diameter: 40mm

FEED SYSTEM:
• Feeding motor: 3HP
• Elevation motor: 1/3HP
• Feeding speed: 19-80FPM

PRODUCT DIMENSIONS:
• Width: 10mm - 230mm (1/2" - 9")
• Thickness: 7mm - 125mm (5/16" - 5")

FEATURES:
• Infeed table length: 51"
• Hard chrome plated table
• Incorporated bed roller
• (3) 4 Wing 5" x 9", corrugated knife stock moulder heads for 40mm (Included)
• (2) 4 Wing 5" x 4", corrugated knife stock moulder heads for 40mm (Included)
• Net Weight: 6,173lbs
• Gross Weight: 6,835lbs
• Machine Dimensions: (L) 102" x (W) 53" x (H) 68"
