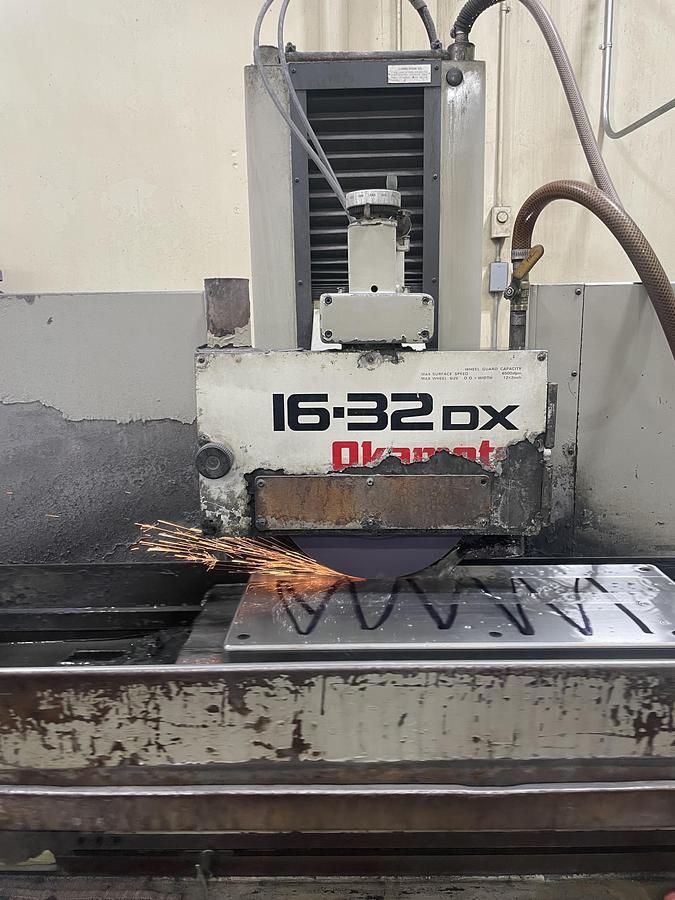

Okamoto 16.32DX

Features:
Fully automatic cycle with rough/fine grinding and spark-out in 1 set-up
Incremental infeed
Vertical manual pulse generator
Okamoto MDI controller
Grinding wheel & wheel adapter
Built-in chuck controller
Cross movement lock
Table parks at right side for safety
Splash cover with coolant nozzle & pipe
Full table back splashguard
Vertical digital positioning display
Coolant system (34 gallon)
Hydraulic over-the-wheel dresser
Magnetic chuck

Technical Data:
Maximum longitudinal travel: 38 inch
Maximum cross travel: 18 inch
Maximum distance under 12” wheel to table surface: 21.5 inch
Magnetic chuck size (W x L): 16 x 32 inch
Table load capacity (including chuck weight): 1540 lbs
T-slots (number x width): 3 x 0.7 inch
Hydraulic feed rate: 1.0 - 82 ft/min
Hand feed per revolution: 1.85 inch
Hydraulic intermittent crossfeed: 0.02 - 0.8 inch
Hydraulic continuous crossfeed rate: 8 - 40 ft/min
Crossfeed per revolution: 0.250 inch
Handfeed dial graduation: 0.001 inch
Automatic vertical feed per table stroke: 0.00005 - 0.0015 inch (10 settings)
Rapid feed rate: 16 inch/min
Manual pulse feed (x.1): 0.00001 inch
Manual pulse feed (x1): 0.0001 inch
Manual pulse feed (x10): 0.001 inch
Grinding wheel size (D x W x B): 14 x 1.5 x 5 inch
Grinding wheel speed: 1800 rpm (60Hz)
Grinding wheel spindle motor: 5 hp
Hydraulic pump motor: 3 hp
Vertical rapid feed & downfeed motor: 0.5 hp AC servo
Power supply: 8.0 KVA
Power supply (includes magnetic chuck & coolant system): 7.5 KVA
Machine dimensions (L x W x H): 132 x 87 x 82 inch
Net weight: 8,800 lbs
Voltage: Dual voltage 230/460 V (normally wired 460 V)
