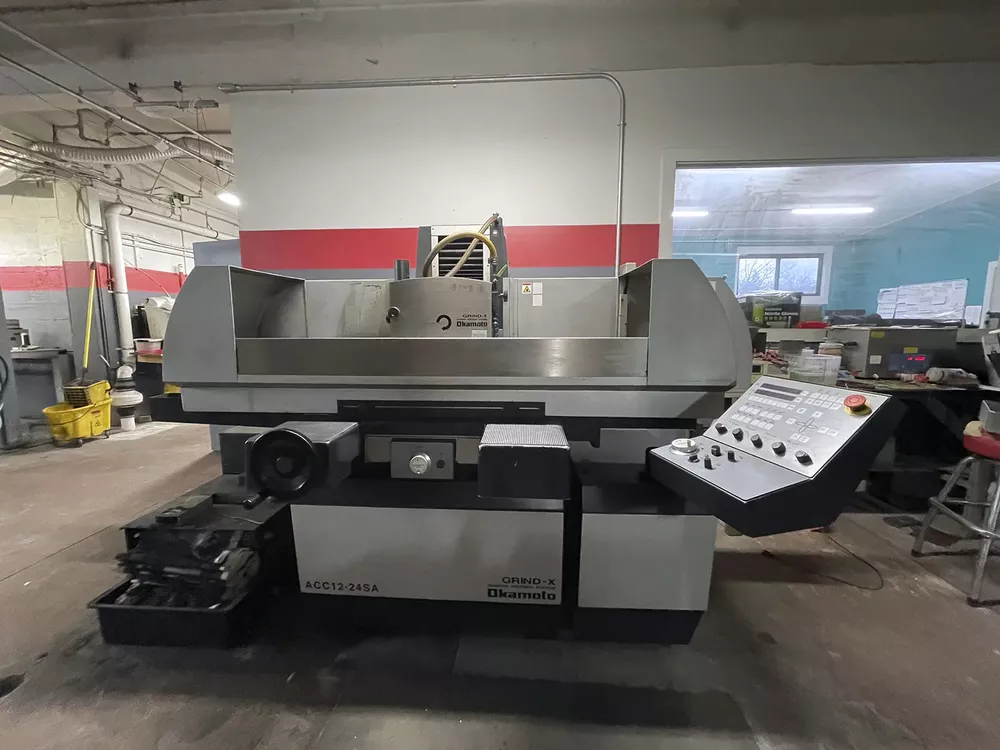

Okamoto ACC-12-24SA Surface Grinder

Max longitudinal travel: 29.5"
Max cross travel: 16"
Max distance under wheel to table surface: 13.6"
Hydraulic feed rate: 1.0 – 82 ft/min
Rapid feed rate: 16 IPM
Intermittent crossfeed: 0.02 – 0.8"
Continuous crossfeed: 4 – 40 ft/min
Crossfeed per revolution: 0.5 / 0.1 / 0.01"
Hand feed per revolution: 1.85"
Automatic vertical feed per table stroke: 0.00005 – 0.0015"
Manual pulse feed: (x0.1) 0.00001"
Manual pulse feed: (x1) 0.0001"
Manual pulse feed: (x10) 0.001"
Handfeed dial graduation: 0.005"
Handfeed dial graduation: 0.001"
Handfeed dial graduation: 0.0001"
Control: Okamoto MDI controller
Digital positioning display
Magnetic chuck size: 12" x 24"
Table load capacity: 925 lbs
T-slots: 3 x 0.7"
3-axis fully automatic
Full table back splashguard
Grinding wheel
Wheel adapter
