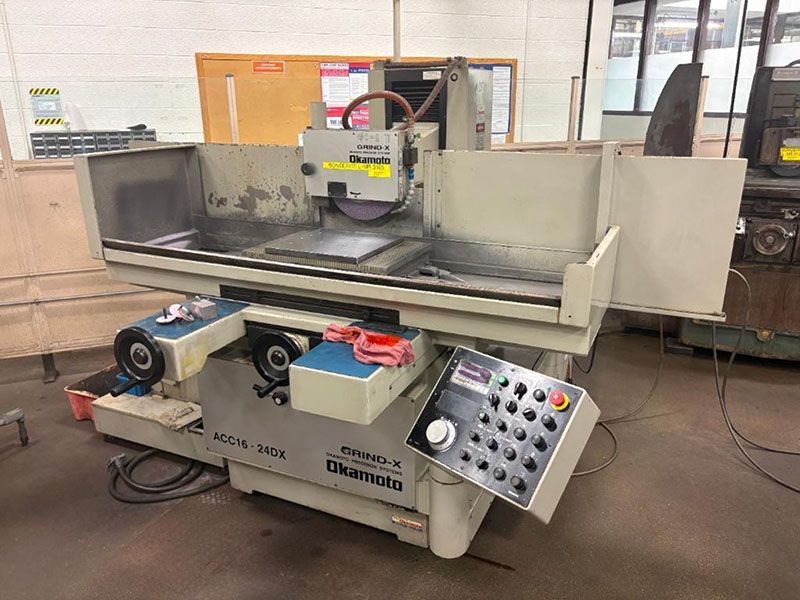

Okamoto ACC-16-24DX

Nominal Grinding Capacity: 16" x 24"
Maximum Height Under 12" Wheel: 13.7"
Table Speed, Infinitely Variable: up to 82' FPM
Maximum Longitudinal Table Movement, Manual: 29.5"
Auto Crossfeed Increment: 0.002" to 0.80"
Auto Continuous Crossfeed: 4' to 40' FPM
Crossfeed Manual, Hand Feed Per Revolution: 0.25"
Crossfeed Manual, Handwheel Graduation: 0.001"
Maximum Crossfeed Manual: 1"
Auto Incremental Downfeed Increments: 0.00005" to 0.0015"
Power Rapid Wheel Positioning Rate: 16" IPM
Spindle Motor: 5 HP
Wheel Size: 14" x 2" x 5"
Approximate Dimensions for Operation: 107" x 87" D x 70" H
Approximate Machine Weight: 7,055 lbs
"DX" Programmable Electronic Auto Incremental Downfeed
Servo Driven Downfeed
Auto Incremental Downfeed for Surface & Plunge Operations
Dual Rate Auto Downfeed with Coarse & Fine Selections
Digital Display for Cross & Vertical Axes
Sparkout Passes (0 to 5) with Auto Table Park at Completion of Grind Cycle
Electronic Handwheel for Manual Vertical Movement, Gradation Equivalent to 0.00001", 0.0001" or 0.001"
Power Rapid Wheel Positioning
Hydraulic Table Traverse
Automatic Crossfeed
16" x 24" O.S. Walker TBP "Cross Pole" Fine-Division Electro-Magnetic Chuck
Variable Hold Neutrofier Control & Demagnetizer
Coolant System with Magnetic Separator
Self-Contained Hydraulic System
5 HP Spindle Motor, 3/60/230-460 Volts
Machine Wired for 230 Volts
