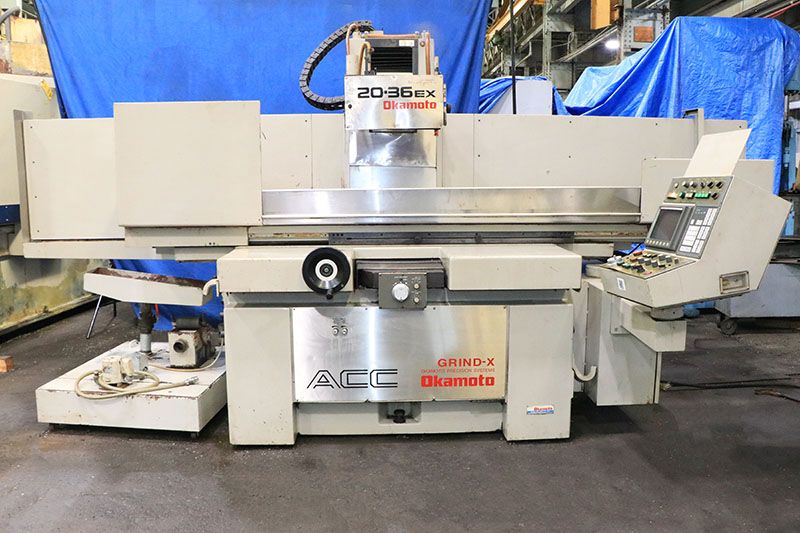

Okamoto ACC-20.36EX

Ref : 2752746-3-CP
Condition : Used
Manufacturer : Okamoto
Model : ACC-20.36EX
Year(s) : 2001
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Nominal grinding capacity 20" x 36"
Maximum height under 12" wheel 21.5"
Table speed, infinitely variable 3' to 82' FPM
Longitudinal table handfeed per rev. 1.85"
Max. longitudinal table movement, manual 41.3"
Auto cross feed increment 0.02" to 0.80"
Auto continuous crossfeed 0.010 to 40' FPM
Crossfeed per rev. (X1, X5, X20) 0.01", 0.05" & 0.2"
Grad. of handwheel (x1, x5, x20) 0.0001", 0.0005" & 0.002"
Max. crossfeed, manual 21.3"
Auto incremental downfeed (10) 0.00005" to 0.0015"
Sparkout passes 0 to 5
Power rapid wheel positioning rate 40" IPM
Manual pulse feed (x.1, x1, x10) 0.00001", 0.0001" & 0.001"
Spindle motor 5 H.P.
Wheel size 12" x 1.5" x 5"
Wheel speed 6,500 SFPM
Grinding wheel speed 1,800 RPM
Approx. dimensions 130" x 88"D x 81"H
Approx. machine weight 10,580 LBS
FANUC EX Series MDI/CNC control with 9" CRT display
2-axis programmable (Y/Z axes)
Simple, quick teach set-up of cycle
Capacity to grind 3 surfaces in a single set-up
Servo driven ballscrews on downfeed & crossfeed
Fully automatic grind cycle with rough, fine, shift-plunge, & rapid wheelhead retraction
Fully-auto over-the-wheel dresser with auto dress, wheel wear compensation, and air-cut allowance
Interrupt cycle at any time to dress, then rapid back to work
20" x 36" electro-magnetic chuck, Interloc pattern
Variable hold neutrofier control & demagnetizer
Coolant system with magnetic separator
Automatic lubrication system
Way protection design
Machine wired for 3/60/208 volts
