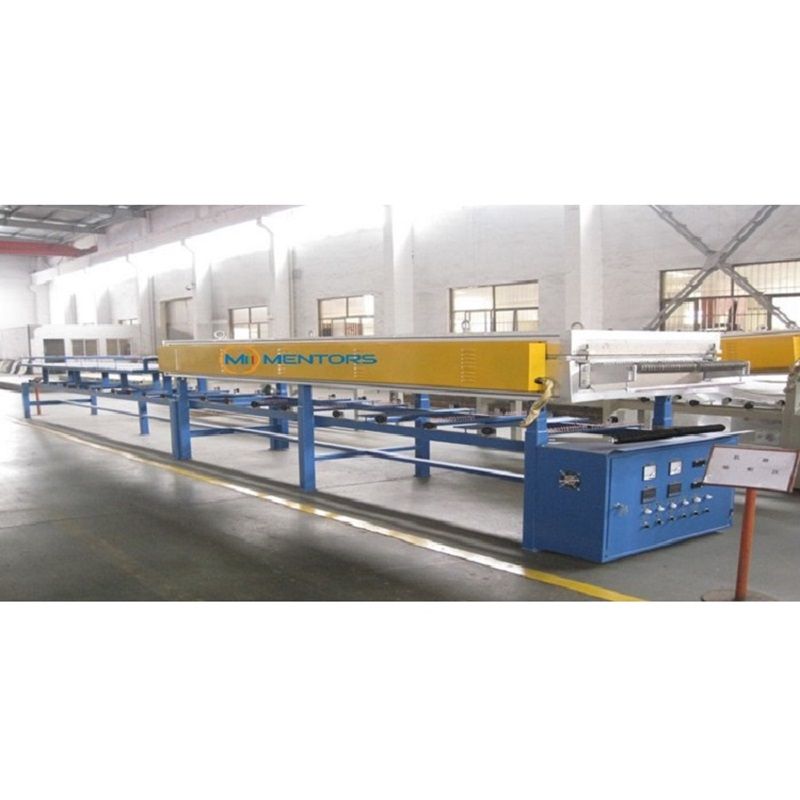

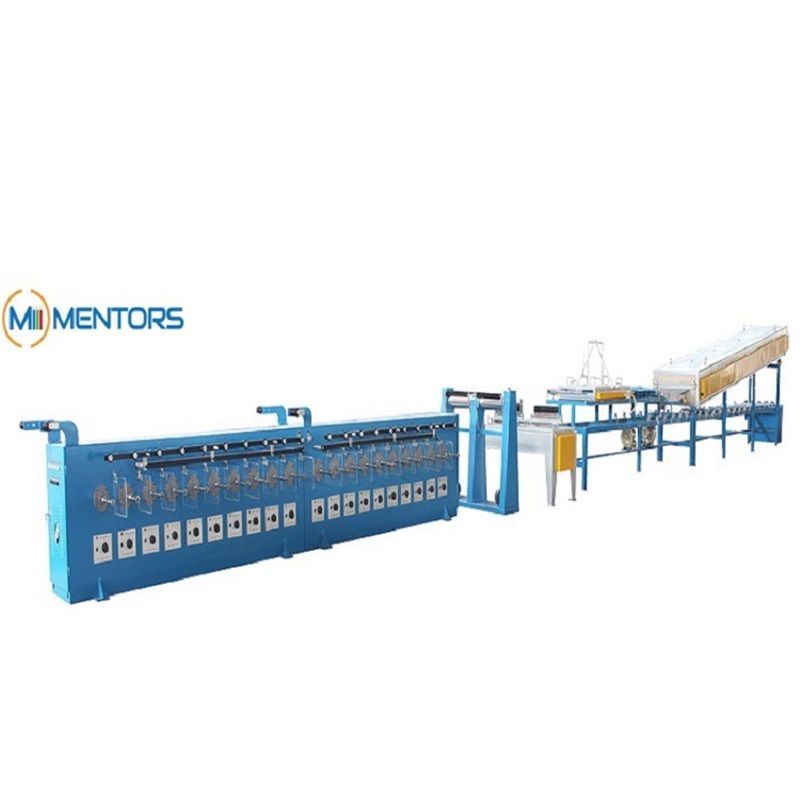

Mentors Machinery 6M Annealing and Tinning Machine SY-40H/6

1-Application:
This machine is special used for annealing and tinning 40 to 60 copper wires 0.08-0.32 mm at the same time.Finished wire is can be winded by small plastic bobbin or bigger 630 spool .

2-Main Feature:
(1)Wire Dia: 0.1-0.65 mm

(2)Drawing Speed: 5 m/s

(3)Single or double layer


3-Parameters:
Item Data
Machine type SY-40H/6
Length of annealing tank 6m
Wire dia Φ0.10-Φ0.65mm
Pay-off stand By brush wire
Max. speed 300m/min
Tin-coating type Dual tank by heater(optional)
Pay-off bobbin size Φ300 or customized
Spool bobbin size PT5-PT25 or customized

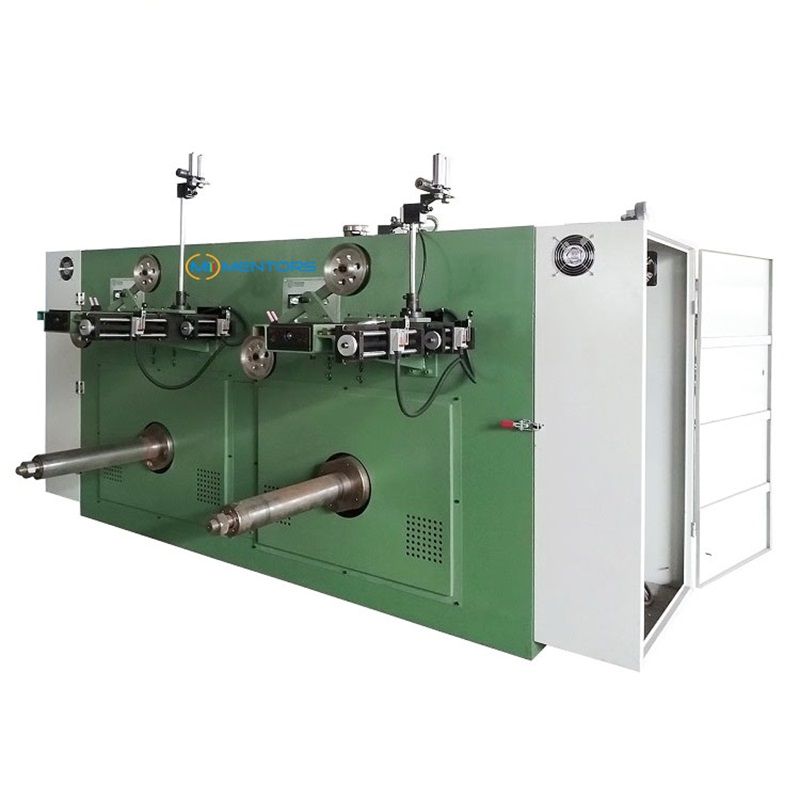

Take-up type Single spooler drive by torque motor
Annealer Continuous annealing by heater
Total power consumption 65KW
Machine dimension 20000L×2200W×1900Hmm

4-Advantages:
(1)Add one room inside the annealing, which can make the temperature impartial distribution.
(2)It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
(3)Support steel for annealing tube won't touch up and down site of the annealing body,the heat won't be dissipated quickly.

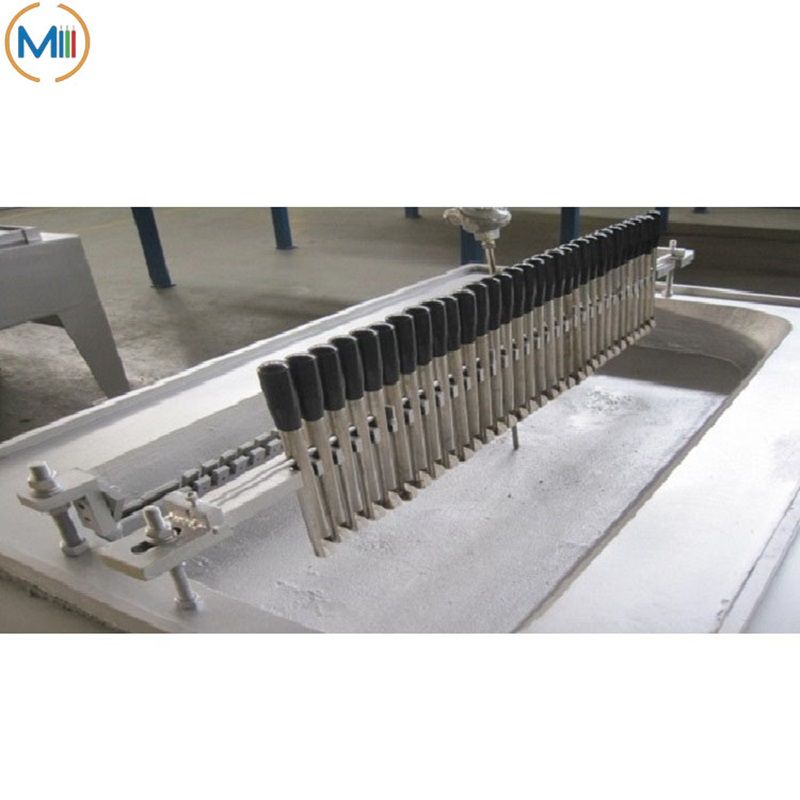

(4)Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.
