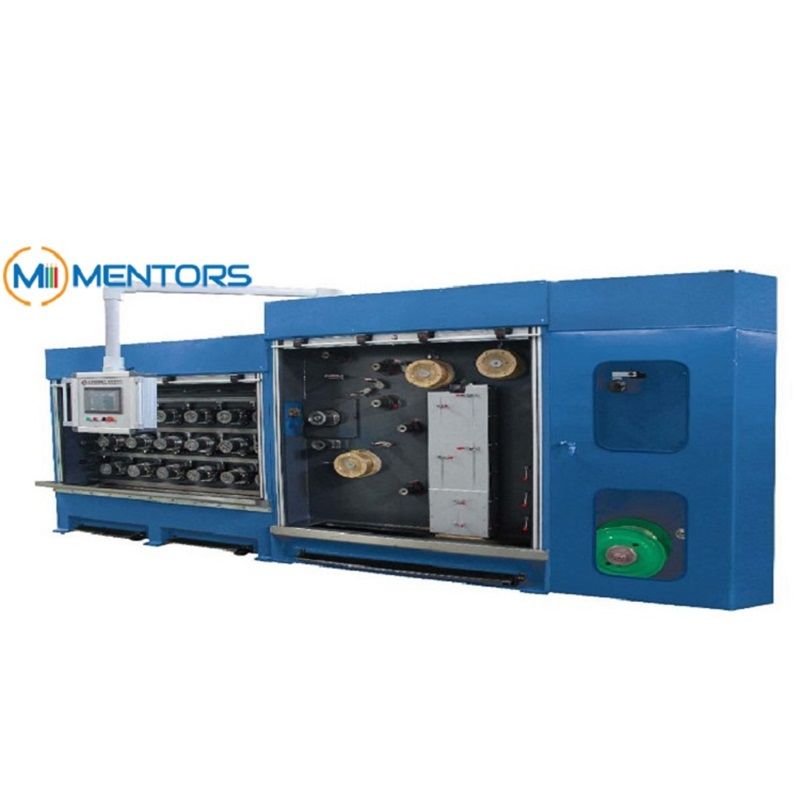

Mentors Machinery MultiWire Drawing Machine for 4 wires SY-DT18/120.4

1. Application:
This Multi Wire Copper Wire Drawing Machine has four wires and is mainly used for drawing copper wire to 0.25-0.70 mm wire.
2.Main feature:

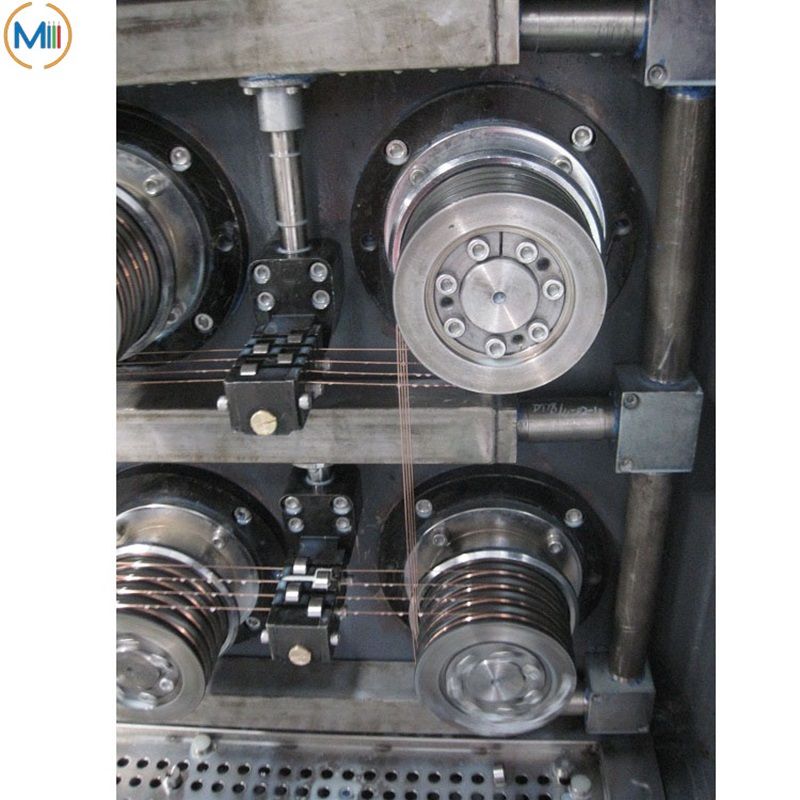

It is a tandem type drawing machine with all the drawing capstans aligned in a row.
1). Wire quantity: 4 wires
2). Max.Inlet wire: 1.85mm, outlet wire: 0.25-0.70mm
3). Raw material: pure copper
3-Parameters:
Machine Type SY-DT18/120.4
Drawing Wire No. 4 Wires
Max. Die No. 18
Max.Inlet Dia.(mm) 1.85
Outlet Dia.(mm)    0.25 ~ 0.7
Drawing Capstan Dia. (mm) 120
Max.Drawing Speed.(m/s) 25
Capstan Ceramic coated or Zirconium
4-Advantage:
1) More stability, high production efficiency, low noise and easy to operation.
2) Space saving around 50%
3) Electricity Saving around 10%; Labour Saving 50%
4) High efficiency for next pay-off progress.
5)Quick die change system for dies quantity saving 30%.
6)Two clutches for faster speed.
