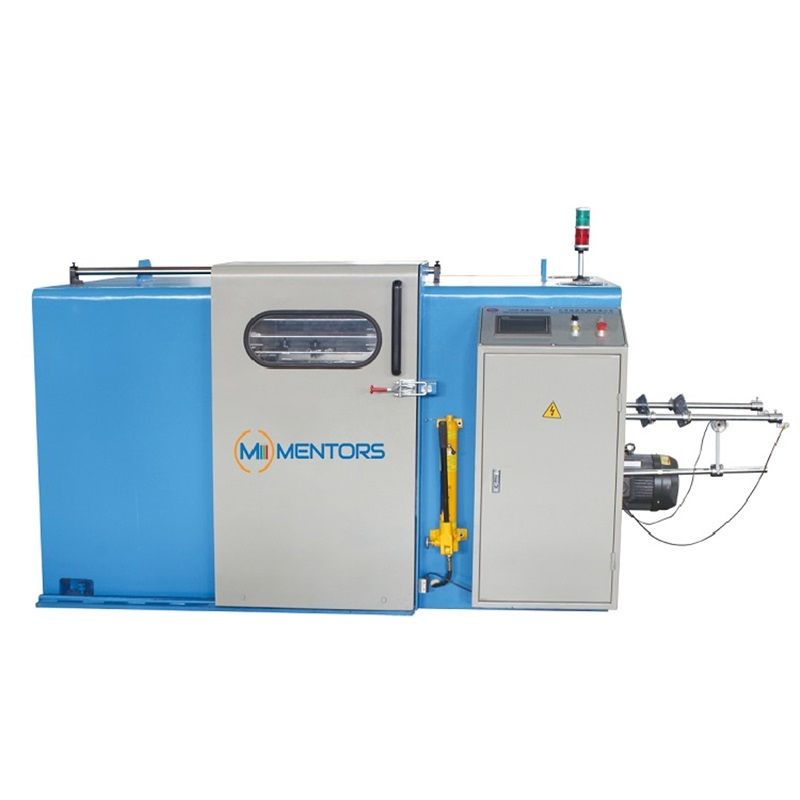

Mentors Machinery Wire Buncher Machine SY-300P SY-500P SY-500P/B SY-650P SY-800P

1-Application:

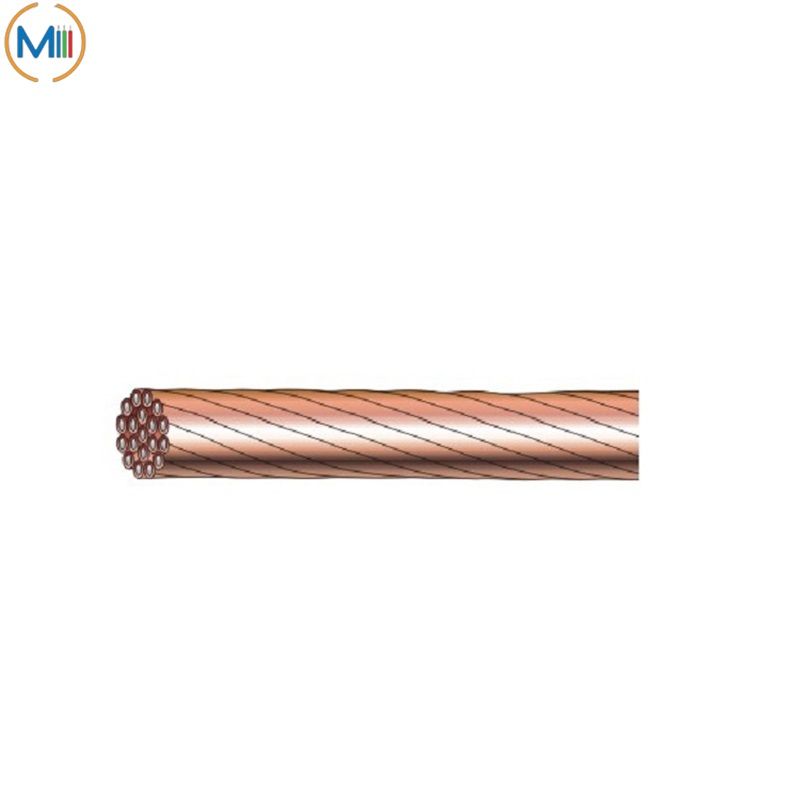

This type machine is mainly used for annealed twisting copper wire.

2-Feature:
1)Types: 300,500,630,800
2)Max speed: 2500-3000r/min
3) Raw material: copper wire, tin coated wire
4) Twisting type: double twist

3-Main Specification:
Machine type SY-300P SY-500P SY-500P/B SY-650P SY-800P
Use For bunching bare copper, tinned wire, enameled wire
Control type PPLC+HMI+Inverter control
Twisting section area((mm²) 0.035~0.45 0.05~2.50 0.05~4.00 0.18~6.00 2.50~16.00
Copper wire dia.(mm) 0.05~0.25 0.10~0.45 0.10~0.52 0.18~1.00 0.50~1.20
Twisting direction S or Z
Take-up tension  tension controlled by magnetic clutch
Max main shaft speed 3000r/min 3000r/min 2500r/min 2000r/min 1200r/min
Bobbin loading&unloading type Hydraulic type
Max bobbin dia. 300 500 500 630 800
Auto stop unit While reach setting length, inside outside wire break, or other error auto stops
Brake Magnetic brake
Motor power(KW) 4 5.5 5.5 7.5 11
Main shaft center height 630mm 700mm 700mm 850mm 900mm
4-Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
4) If the wire breaks, the machine can stop automatically.
