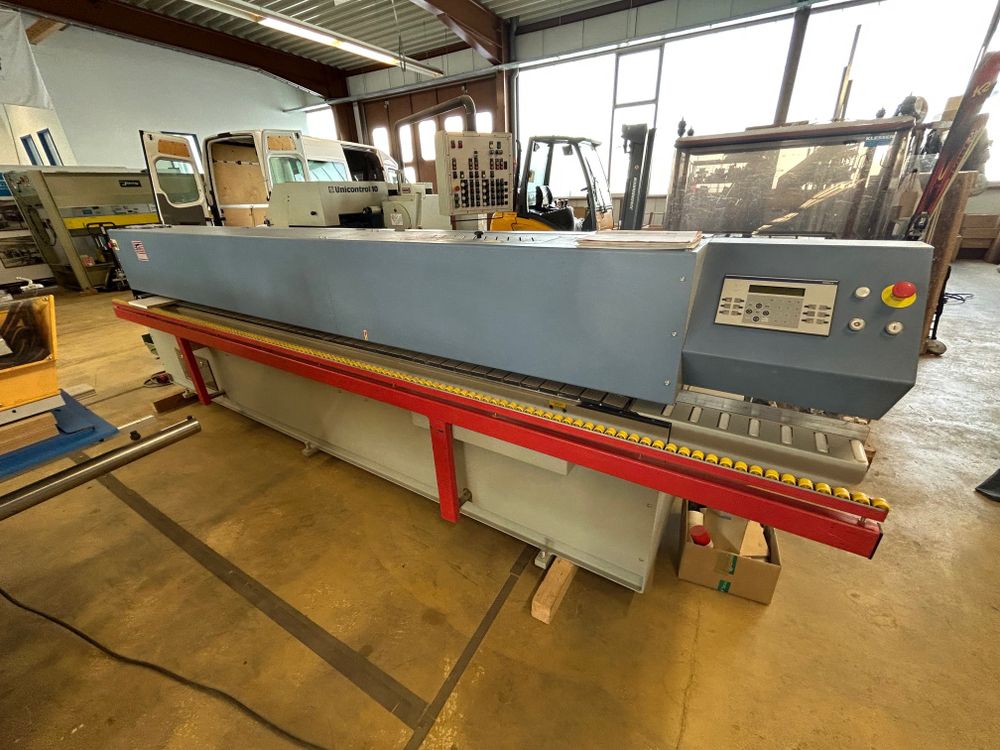

OTT Atlantic V6F

Used machine
MAGELIS control for EVA-based hot melt adhesives
with the following equipment:
- Joining 2 x 1.5 kW, u=12000, 200 Hz
- End milling 2 x 0.2 kW, automatic swivel 0°/3°
2 carbide saw blades Ø 140 mm
- Flush trimming 2.07 kW, with WPL heads HF 70, Ø 70 mm
- Radius milling, R2
- Radius scraper
- Surface scraper
- Glue pot on top

Workpiece dimensions:
Width min. 70 mm
Thickness 8-42 mm
Length min. 150 mm
Edge thickness 0.2-6 mm
Feed speed 12 m/min.
Extraction port Ø 160 mm
L=4500 x W=1250 x H=1300 mm
Weight 1650 kg
