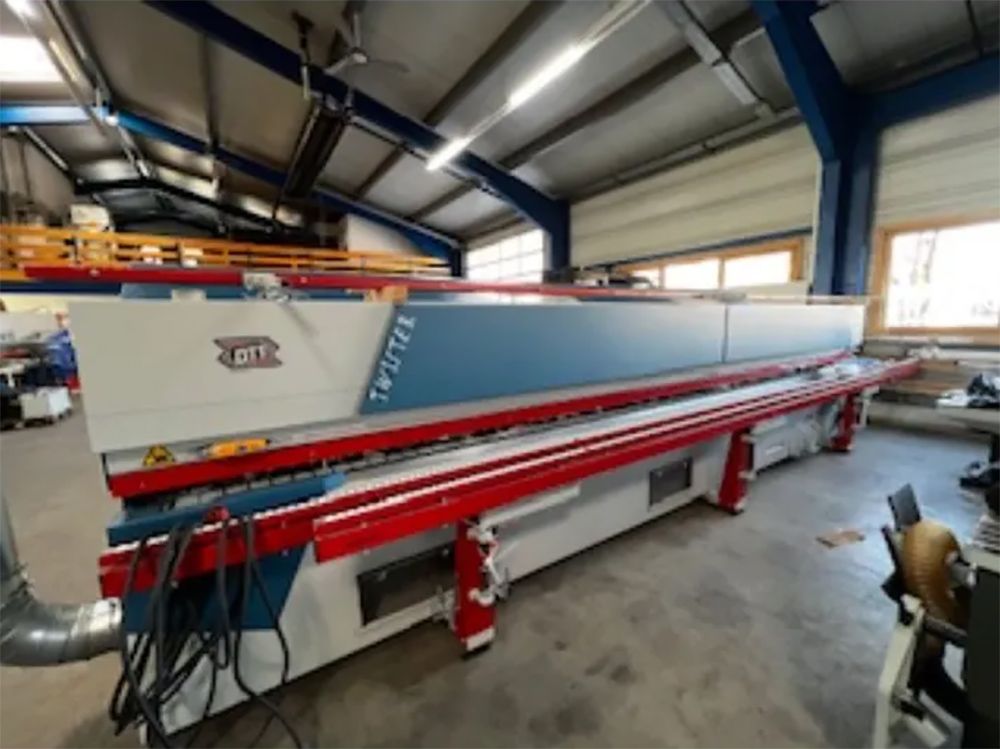

OTT TWISTER

Fully Overhauled
Workpiece Dimensions:
Minimum workpiece width: 70 mm
Minimum workpiece height: 8 mm
Maximum workpiece height: 60 mm
Minimum workpiece length: 150 mm

Performance:
Feed speed: 14 – 20 m/min, stepless
Machine length: 7,300 mm
Weight: approx. 3,500 kg

Equipment & Units:
Double upper pressure system
ADK – Automatic continuous lubrication
CM Combimelt gluing unit
Second gluing unit
15” touch screen monitor
FK – Jointing milling unit
AKM – Edge magazine
RMV 40 – Automatic roll magazine
K13 – Double end trimming unit
BFC – Flush milling unit
HFT – Fine trimming unit
AKF – Automatic corner rounding
ZKc – Radius scraper blade
ZKf – Flat scraper blade
ZK HG – Second radius scraper
AS – Antistatic spray unit
GS – Release agent spray unit
RS – Cleaning set
WE – Angular infeed support
LT – Air cushion infeed table

Overhaul & Refurbishment :
Machine completely dismantled
Dry ice cleaned
Partially repainted
New chain plates
New upper pressure rollers
New tools installed
Machine is in excellent technical and visual condition, ready for industrial production.
