Pama T type 3000 rpm
Ref :
2540570-3-MT
Condition :
Used
Manufacturer :
Pama
Model :
T type
Spindle Size :
-
Spindle Speed :
3000 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

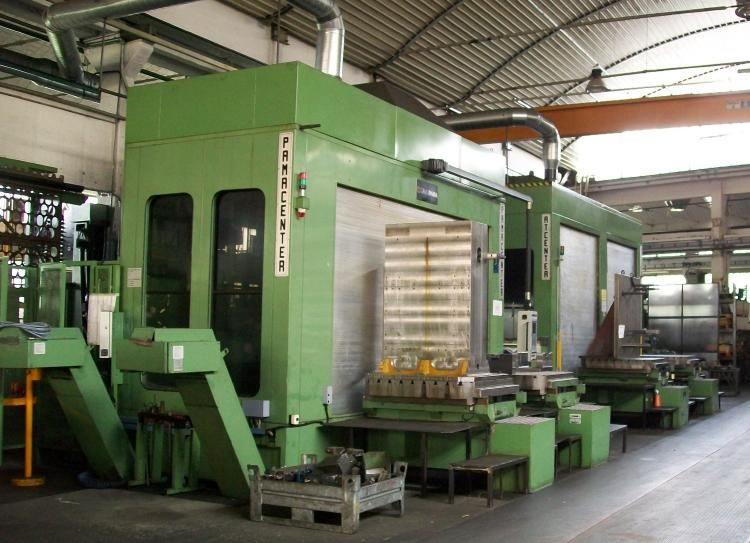

PAMA CENTER
T type
- axis X mm.3100
- axis Y mm.2000
- axis Z quill stroke mm.450
- axis W column mm.1550
- table n.2 pallett mm.1250x1250
- max load on pallet kg 6000
- quill mm.130 mm
- spindle revolution rpm 3000 with gear change
- power kw 30
- taper ISO 50
Completely retrofitted in 2000:
- new electric and hydraulic equipment
- control Z32 (4 axis in continuous)
- new change tool: 350 position
- tool setting with balluff
- pallett change
- Installed software for the management of pallet unmanned
- control system tool wear and brake
- touch probe renishaw
