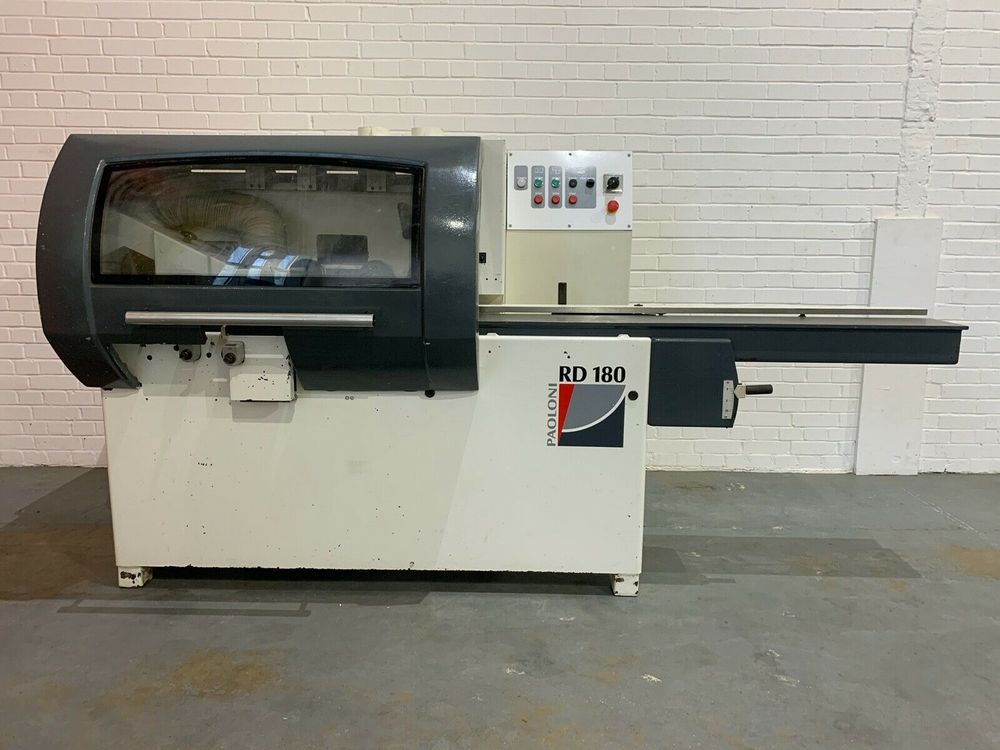

Paoloni RD180

Four Sided Planer
Min./Max. working width (finished section) – 25/180mm.
Min./Max. working thickness (finished section) – 8/105mm.
Feed speed – 6/12m/min.
Minimum working length – 350mm.
Cutterblock diameter – 120mm.
40mm diameter spindle speed – 6,000rpm.
Motor power of the spindles – 7.5kW(10hp).
Feed motor power – 0.7/1.1kW.
Infeed table length – 1700mm.
Quick adjustment of table and infeed fence – 10mm.
Upper planer maximum removal – 10mm.
3 x dust extraction pipe diameter – 120/120/150mm.
Weight – 930kg.
Dimensions – 2730 x 1110 x 1410mm (LxWxH).
