Paxson Cut To Length Line Coil Weight: 40,000 lbs.

Width: 60"
Thickness: 0.020" - 0.135"
Coil I.D.: 20" - 24"
Line Direction: Right to Left

Entry Coil Car
Above Floor Type
Hand Pendant Control
Self-Contained Hydraulic Power Unit

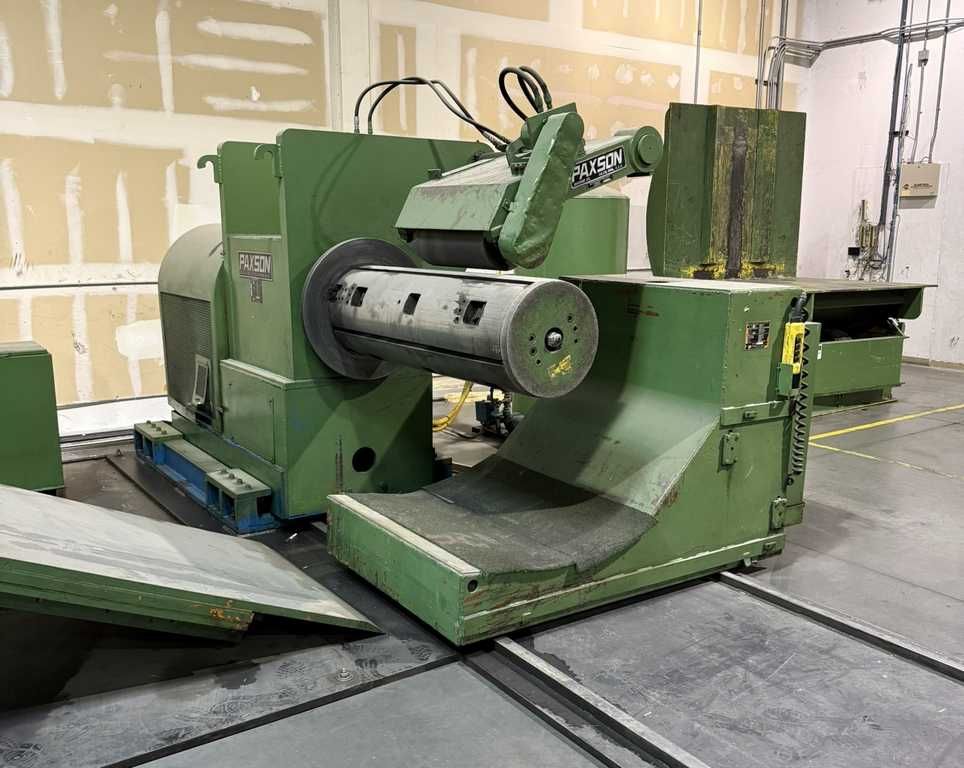

Uncoiler
Mandrel Type
Overarm Holddown
Slide Base
Water Cooled Brake
Hydraulic Motor Feedup

Peeler Table
Hydraulic Lift & Extend

Paxson Precision Leveler: 6 HI
1.750" Roll Diameter x 74" Roll Face
Entry Pinch Rolls, Powered
8 Flights of Backups, (6 Flights Motorized)
125 HP WER DC Motor, 1750/2000 RPM, 500 V

Cascade - Loop Table

Roll Feed
Entry Side Guides
Full Width Rolls
Exit Paper Applicator
30 HP Emerson DC Motor

High Speed Shear
Over Driven, Mechanical
Manual Blade Gap Adjust
30 HP WER DC Drive Motor, 1750 RPM, 500 V
Air Clutch/Brake

Automatic Stacker
Flipper Arm Type
Powered Width Adjustment
Powered Length Adjustment
Non Scratching Roller Supports
20' Maximum Length
Mechanical Screw Jack Lift Table
Powered In-Line Eject Conveyor

Exit Runout Conveyor
Powered Rolls

Main Operators Control Panel

Water Cooler

Hydraulic Power Unit

Electrical Controls and Drives

Air Compressor
220 KVA, 480 V
