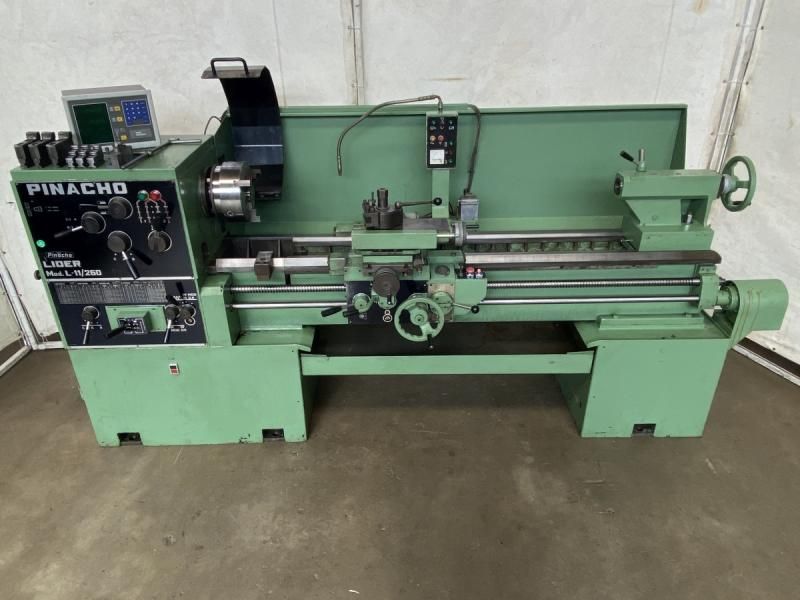

Pinacho Engine Lathe 1800 RPM L-11/260

Distance Between Centers: 1500 mm
Turning Diameter Over Bed: 520 mm
Center Height Over Bed: 260 mm
Turning Diameter Over Support: 320 mm
Center Height Over Support: 160 mm
Spindle Bore: 72 mm
Spindle Speed: 30 - 1800 RPM, 12 steps
Spindle Flange: Short Taper DIN 55027, Size 5
Tailstock Taper: MT 5
Motor Power: 9 kW
Electrical: 400 V, 50 Hz
Digital Readout: 2-axis NEWALL Digipac 5
Digital Readout for 3 Axes: Z, Z1, X
Chuck: 3-jaw RÖHM Ø 250 mm with turning and drilling jaws, 1 set of soft jaws
Tool Holders: Multifix quick-change, Size B, 2 exchange cartridges
Feed: Automatic longitudinal and facing
Rapid Traverse
Spindle Brake: Electric
Coolant System: In machine base
Chuck Guard
Splash Guard
Footprint: 3050 x 1100 x 1550 mm
Weight: 1,750 kg
Bed Guides: Good condition, no wear
