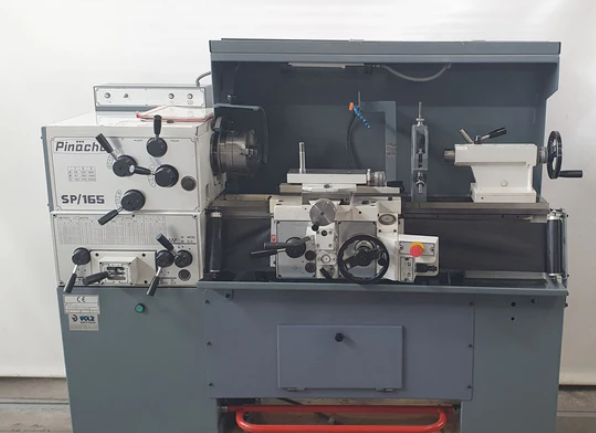

Pinacho Engine Lathe 2000 rpm SP-165

Ref : 2794614-3-MT

Condition : Used

Manufacturer : Pinacho

Type : Engine Lathe

Spindle Speed : 2000 rpm

Model : SP-165

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Centre height: 165 mm
Distance between centres: 750 mm
Swing over bed: 330 mm
Swing in gap: 480 mm
Gap length: 120 mm
Spindle hole: 42 mm
X1 travel: 245 mm
Z1 travel: 750 mm
Spindle taper: MK4
Spindle speeds: 12 steps
Spindle speed range: 60 - 2000 rpm
Tailstock taper: 3 CM
Spindle diameter: 48 mm
Spindle stroke: 145 mm
Feeds: 20 steps
Longitudinal feed range: 0.047 - 1 mm/rev
Transverse feed from: 0.021 mm/rev
Spindle motor: 3 CV
Machine weight: 705 kg
Machine dimensions: 1710 x 820 x 1225 mm
3-jaw chuck Ø160 mm
Fixed steady
Drilling tailstock
