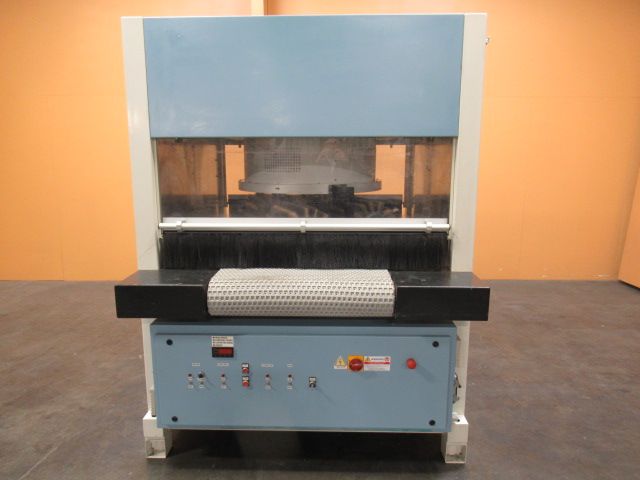

Quickwood PRO-800
AMERICA North (USA-Canada-Mexico)
DENIBBING SANDER
32" Wide feed belt
Thickness capacity: 4"
1.5 HP main motor which drives the rotating carousel
Rotation speed of 2 to 15 RPM
The carousel has two stationary gear heads with two spindles each for a total of four sanding heads (driven by 3 HP motor)
Spindle speeds are adjustable from 200 to 1200 RPM
Vacuum bed conveyor feed system with 10 HP vacuum fan motor
Variable feed speed of 3 to 45 FPM by a 1.5 HP feed motor
Motorized opening of table by part thickness setting with keypad and LED readout
Dust requirements: Approximately 4,400 CFM with (5) 6-1/2" dust ports
Machine weight: 3,750 lbs.
Note: Machine sold with existing abrasives on machine.
