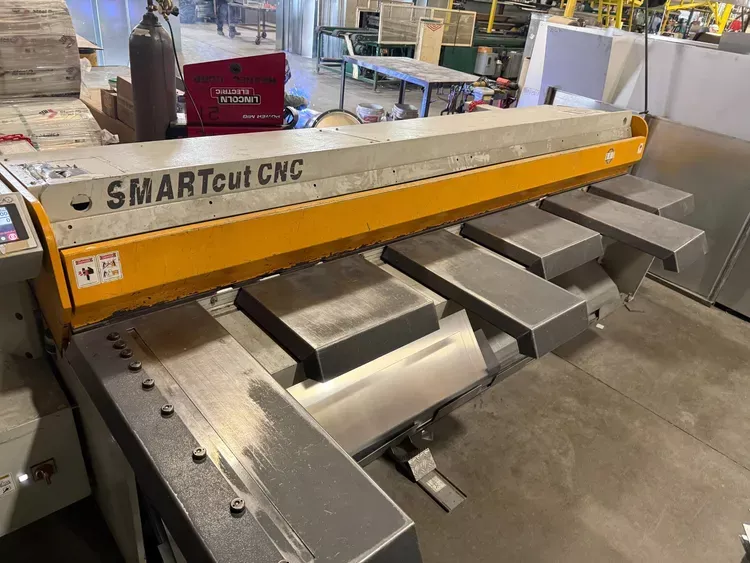

Ras SMARTCUT 52.30

RAS SMARTCUT 52.30
2017

Cutting length: 122″
Max thickness: 0.064″
Material thickness max (58,000 PSI): 14 ga
Backgauge range: 0.2″–29.5″
Backgauge depth: 750 mm
Strokes per minute: 36
Blade angle: 0.9°
Cutting technology: Swing beam
Power: 4 HP
Machine dimensions: 145″ x 66″ x 55″
Machine dimensions (alt): 148″ x 91″
Weight: 4,300 lbs

Swing beam cutting
Low rake angle
Long cutting blade lifetime
Sorting cut pieces to front or rear
Sheet support system
Manual or CNC backgauge
Touchscreen control
Graphical icons interface
50 programs storage
20 lines per program
Single or continuous stroke mode
Manual front-operated backstop
LED cutting line illumination
Beveled shear tables
Adjustable bolts on squaring arm
Self-cleaning squaring arm
Downholder with rubber strip
Optional 1500 mm table extension
Ball rollers
Front stops for sheet positioning
Adjustable angular stop
Cutting gap adjustable by rotation wheel
Burr-free cuts
Setting positions shown on scale
Foot lever for chute control
Parts sorting front or rear
Parts collectors
Moveable stacking carriage
