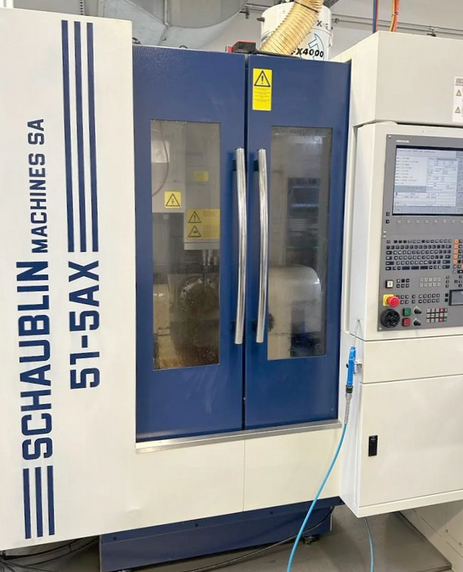

Schaublin 51 5AX CNC 5 Axis

X-Axis Travel 300 mm
Y-Axis Travel 400 mm
Z-Axis Travel 430 mm
A-Axis Swivel +30/−120°
C-Axis Rotation 360°
Rotary Table Diameter 210 mm
Table Load Vertical 50 kg
Table Load Horizontal 75 kg
Control HEIDENHAIN iTNC 530
Tool Magazine 20 Places
Tool Diameter 80 mm
Diameter with Free Adjacent Pockets 95 mm
Tool Length 250 mm
Max Tool Weight 6 kg
Tool Change Time 3 s
Spindle Nose HSK-A63
Distance from Vertical Spindle to Table 45–475 mm
Distance from Spindle Center to Vertical Slide 470 mm
Spindle Speed 0–20,000 rpm Stepless
Spindle Motor 23 kW
Feed Rate 12,000 mm/min
Rapid Traverse 30 m/min
Air Supply 6 bar
Voltage 3×400 V 50 Hz
Machine Weight ≈5750 kg
Overall Dimensions 2700×1800×2600 mm
Coolant System
Water Cooler
Oil Mist Extractor FX4000
Rinsing Gun
