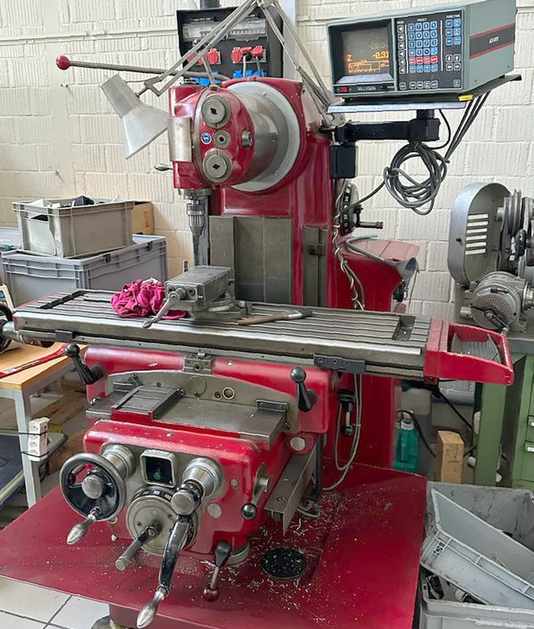

Schaublin 53 1510 t/min

Table length 1100 mm
Table width 305 mm
Longitudinal travel (X-axis) 700 mm
Transversal travel (Y-axis) 250 mm
Vertical travel (Z-axis) 490 mm
Spindle speeds 18 steps
Spindle speed from 38 t/min
Spindle speed up to 1510 t/min
Spindle taper 40 ISO
Longitudinal feed from 12 mm/min
Longitudinal feed up to 1050 mm/min
Transversal feed from 12 mm/min
Transversal feed up to 1050 mm/min
Vertical feed from 6 mm/min
Vertical feed up to 525 mm/min
Rapid traverse X 3.5 m/min
Rapid traverse Y 3.5 m/min
Rapid traverse Z 1.7 m/min
Voltage 50 Hz 3x380 V
Motor output 5.5 CV
Total power 8 CV
Machine weight 2100 kg
Overall dimensions L 1800 mm
Overall dimensions W 1600 mm
Overall dimensions H 1800 mm
3-axis digital readout
Lamp
Chip tray
