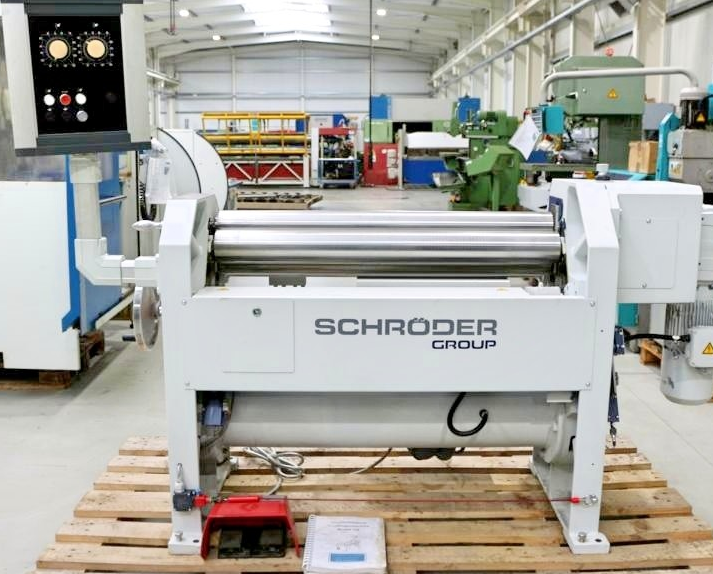

Fasti, Schroeder 134-10/3.0

Working width: 1040 mm
Max plate thickness (steel): 3.00 mm
Upper roll diameter: 100 mm
Lower roll diameter: 100 mm
Side roll diameter: 100 mm
Rolling speed: 6.0 m/min
Operating mode: Semi-automatic
Control unit: FM 2.1R
Voltage: 400 V
Total power requirement: 2.2 kW
Machine weight: approx. 740 kg
Machine dimensions (L×W×H): 2250 × 825 × 1910 mm

Features / Equipment
Electro-mechanical three-roll plate bending machine
Spur gear brake motor drive
Primary reduction gearbox
Electrically driven top roll
Electrically driven side roll
Asymmetrical roll arrangement
Manual bottom roll adjustment
Analog position indicator
Control unit FM 2.1R
Side roll travel limit setting
Swing-out top roll
Hinged top roll bearing
Conical bending device
Freely movable double foot switch
Right-hand roller rotation
Left-hand roller rotation
Electrical safety device
Original operating instructions included
