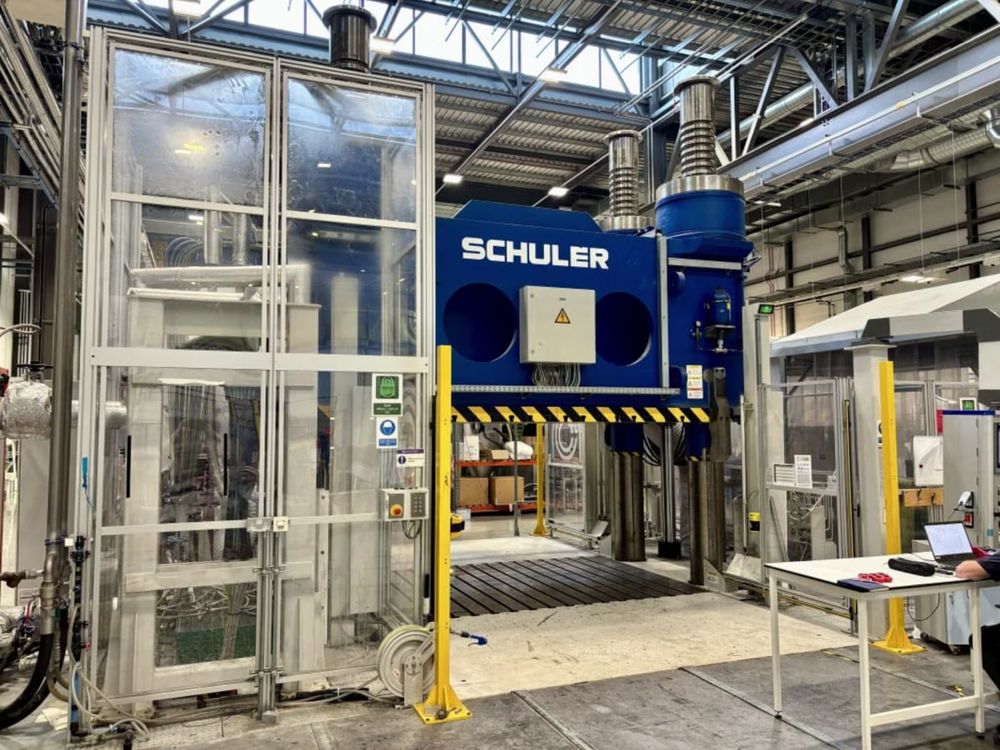

Schuler CHAPU-3600-3.6X2.4 4,000 US tons

Press force: 4,000 US tons
Rated press force: 36,000 kN
Total stroke: 7.87 in
Working stroke: 3.93 in
Daylight minimum: 15.74 in
Daylight maximum: 110.23 in
Overall bed area right-left: 141.73 in
Overall bed area front-back: 94.48 in
Usable bed area right-left: 143.7 in
Usable bed area front-back: 94.48 in
Distance between posts right-left: 143.7 in
Distance between posts front-back: 49.21 in
Slide speed rapid down: 2,362 IPM
Slide speed working at rated force: 82.6 IPM
Slide speed maximum working: 94.4 IPM
Lower slide working speed at 3,372 tons: 2.3–94.4 IPM
Lower slide working speed at 4,000 tons: 2.3–82.6 IPM
Return speed: 94.4 IPM
Press force tolerance above 10,000: approx. 2%
Repeat accuracy of press force: approx. 1%
Positioning accuracy at 1.18 IPM: ±0.001968 in
Floor to bed height: 0 in
Hydraulic oil capacity minimum: 2,773 gal
Hydraulic oil capacity maximum: 3,434 gal
Electrical supply: 400 V
Electrical frequency: 50 Hz
Electrical current: 1000 A
Press base length: 229.52 in
Press base width: 151.57 in
Machine weight: approx. 573,201 lb

Features / Equipment:
4-post hydraulic press
Schuler MultiView version 7.2 control
Siemens control system
Mold heating system
Press manifolds
Vacuum pump
Vacuum reservoir
Roof-mounted hydraulic cooling system
Rapid crown adjustment system
