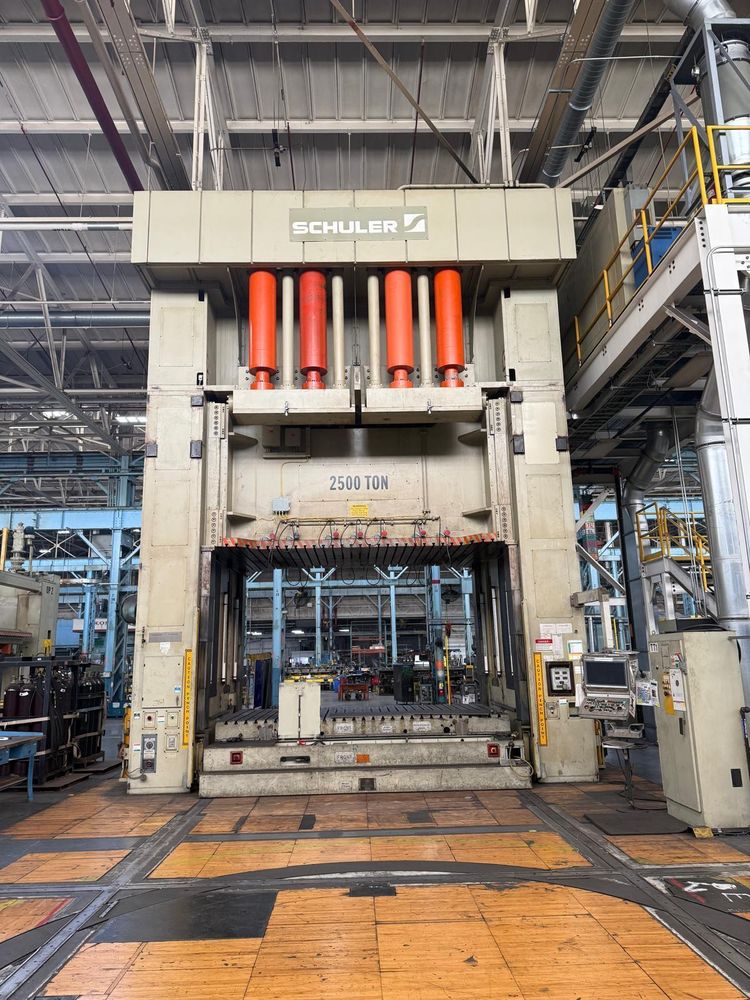

Schuler HZPU 2250 4600/2450 2500 US tons

SCHULER HZPU 2250 4600/2450
2000

Number of manufacture: 7.5478
Nominal force: 2500 US tons
Maximum stroke: 75 inch (1905.0 mm)
Slide closing speed: 709 inch/min (18008.6 mm/min)
Working speed max: 1181 inch/min (29997.4 mm/min)
Working speed min: 12 inch/min (304.8 mm/min)
Die area max (L-R x F-B): 180 x 96 inch (4572 x 2438.4 mm)
Die area min (L-R x F-B): 120 x 64 inch (3048 x 1625.6 mm)
Die shut height min: 31.1 inch (789.94 mm)
Total weight of die: 60 US tons
Weight of upper die: 30 US tons
Admissible off-center load: 1,253,850 lb-ft
Installed power rating: 715 HP
Nominal current: 870 A
Voltage: 480 V
Frequency: 60 Hz
Hydraulic operating pressure: 4133 PSI
Total oil volume: 2900 gal
Oil type: HLP 46
Air pressure: 90 PSI
