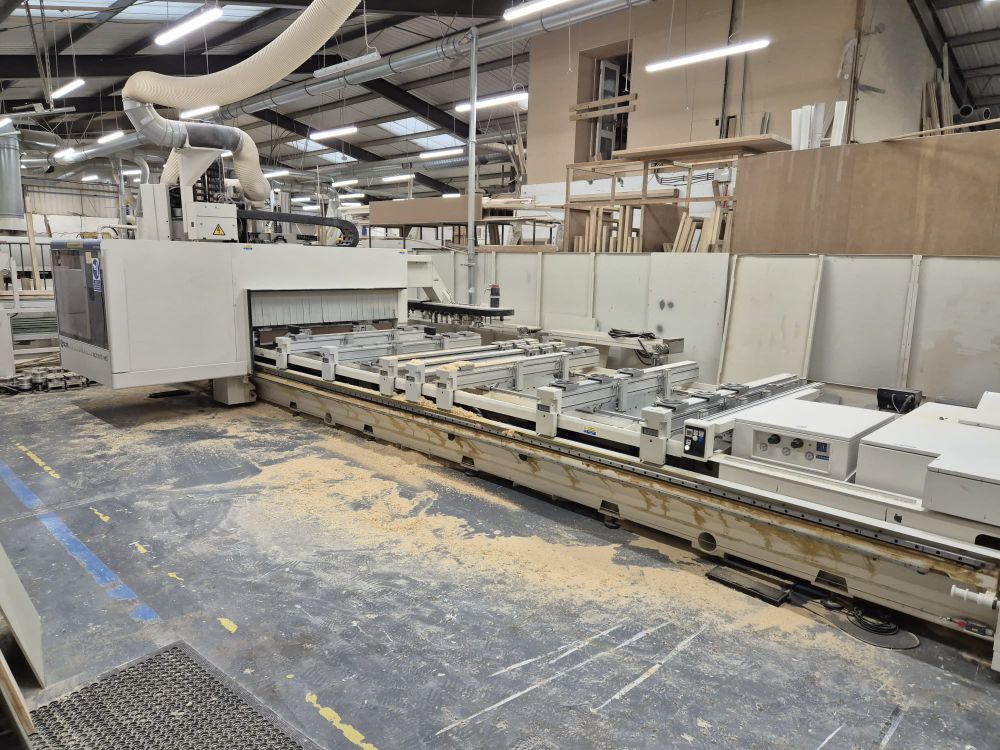

SCM Accord WD 5-axis

Flexible work cell for the production of window and door frames.
It can perform batch or unit production; the work cycle is never interrupted and always at highest feed speed.
Maximum flexibility to process special window and door frames or other types of elements.

Technical data:
Working areas:
X-Y-Z axes dimensions mm :
3680x1905x350
6360x1905x350
Axes : X-Y-Z axes max. speed m/min 90-90-30
Machining head :
5 axes electrospindle motor power (max.) kW 13
5 axes electrospindle rotation speed (max.) rpm 18000

Tool stores :
Tool store on machining head positions 12
Rear tool store positions 48
Side tool store positions 12
