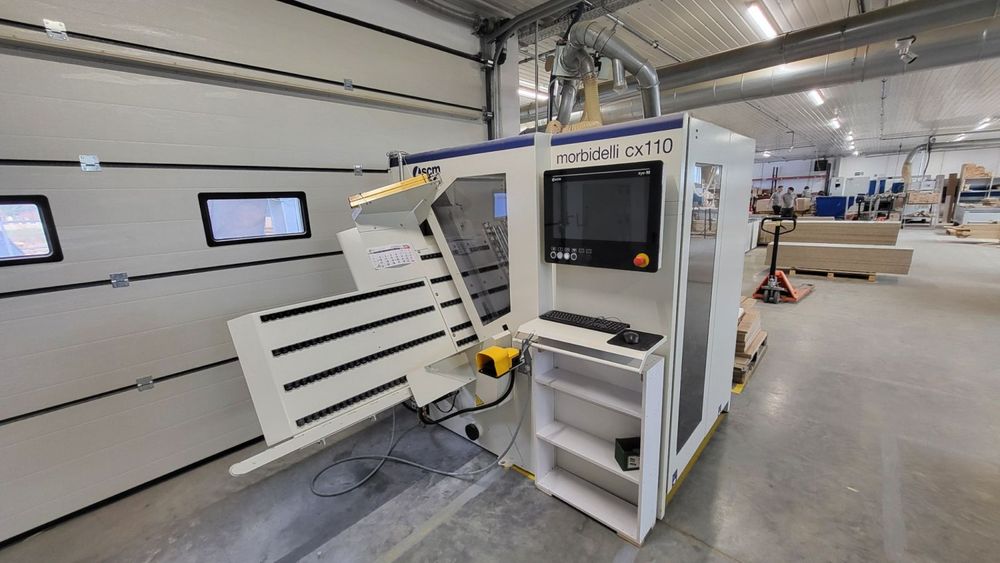

SCM CX110

CNC drilling machine
Machine condition : like NEW

TECHNICAL DATA ;
AXES :
min/max element length 200 mm / 3050 mm
min/max element width 50 mm / 950 mm
min/max element thickness 8 mm / 60 mm
max XYZ axis speed 50 / 40 / 30 m / min

DRILLING HEAD:
vertical spindles 13 pcs.
horizontal spindles 3+3 (X); 2+2 (Y)
motor power 2.2 kW
rotation speed 4500 rpm
grooving saw Ø125 mm; 5500 rpm

ELECTRIC SPINDLE ;
motor power 5.5 kW
max rotation speed 18,000 rpm
manual tool magazine
max tool diameter Ø20 mm

OTHER ;
installed power 21 kW
air demand 450 Nl/min; 6 bar
sawdust extraction 2 x Ø100 + 1 x Ø80; 21 m/s
