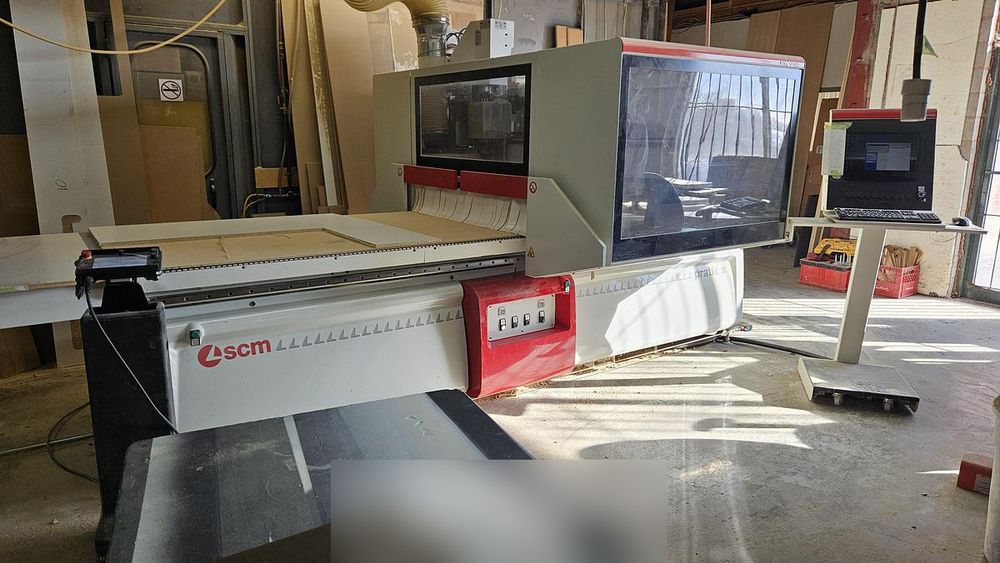

SCM PRATIX S-12-B

Used Flat table CNC
Flat Table Machine (w/ATC/Boring)

Single 4' x 8' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with:
"MATRIX" square grid pattern for fixturing parts.
Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".
Part location pop-up pins mounted on the table perimeter.
Working Field"X" Axis is 98" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 5.9" (150 mm).
Positioning Speed"X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.
High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways.

Boring Unit 3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers: (5) Spindles in "X" axis & (2) spindles in "Y" axis.
Machining(1) 9 HP (6.7 kW)
Air-cooled electro spindle with: HSK F63 Adaptor; variable spindle speeds from: 1,500 - 24,000 RPM.(1) 8-Position ATC tool rack mounted to the machine.

Operator & Machine ControlPC Front End with: "XILOG Plus" + Windows "XP Pro"
Operating System; 17" high resolution LCD; ergonomic keypad.
USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.
All computer components are mounted on a mobile stand.
XILOG Plus Offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration,
encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria.
