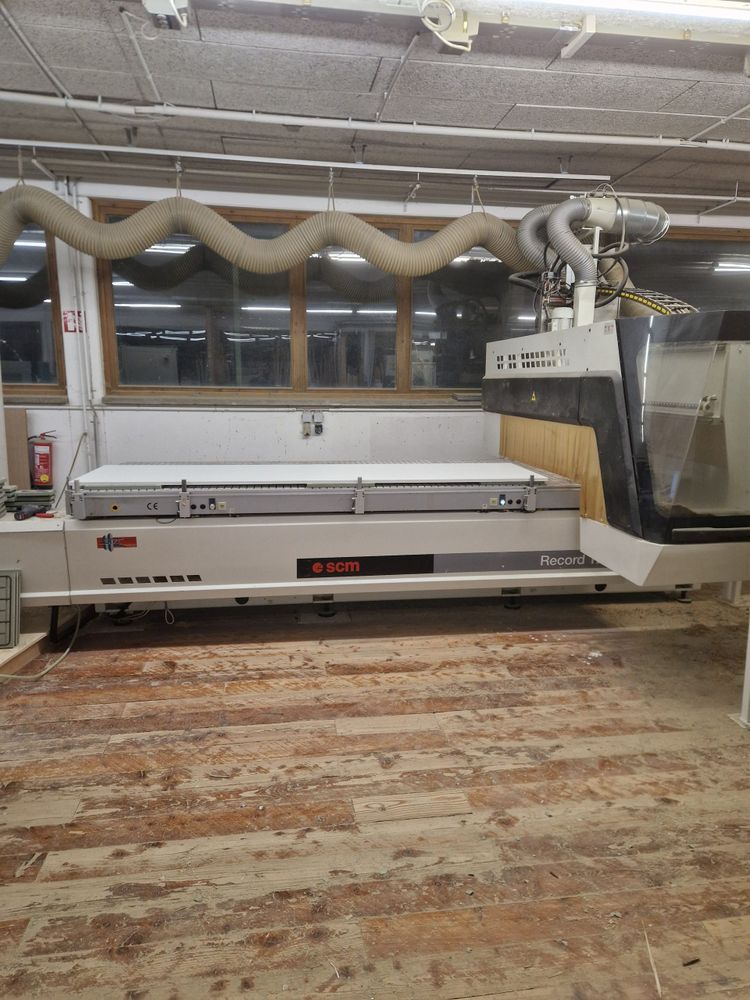

SCM Record 125

CNC machining center
Worktable dimensions: 3050 x 1200 mm
Travel X – Y – Z: 3400 x 1720 x 400 mm
Workpiece height: 310 mm
Electric spindle 7.5 kW / 18,000 rpm
Tool holder HSK 63 F
RAPID 12 tool changer with 12 tool positions
Drilling unit with 18 spindles
Aluminum worktable with integrated vacuum system
Lowerable pneumatic stops for aluminum table
Axis movement via ground ball screws
Axis speed X – Y – Z: 80 – 55 – 25 m/min.
Vector rotary axis (C-axis) = prepared
CNC-controlled central lubrication system
Vacuum pump 250 m³/h, 5.5 kW
NUM1040 PC control unit with XILOG Plus and Telesolve
Central suction outlet, 250 mm diameter
Space required: approx. 6,200 x 4,500 mm
Machine is in working order and ready for demonstration
