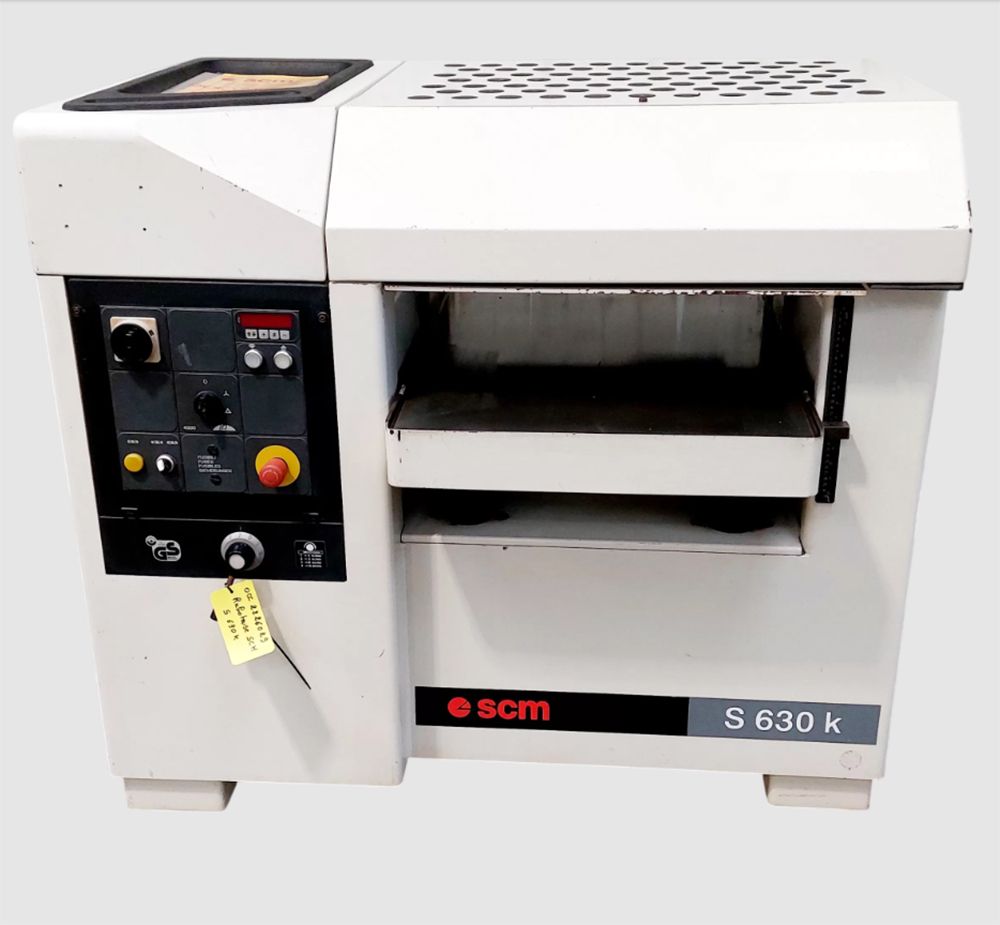

SCM S630 K

PLANER WITH ELECTRIC LIFT & 4 SPEEDS
MAKING CAPACITIES:
- Planing width: 630 mm
- Minimum/maximum working thickness: 4 to 300 mm
- Minimum working length: 260 mm
- Adjustable depth of cut: maximum 8 mm in one pass
- Spindle speed: 4500 rpm
- Feed speeds: 5 - 8 - 12 - 19 m/min

MACHINE COMPONENTS:
- Welded steel frame
- Cast iron table (W x D): 640 x 1000 mm on 4 slides
- Electric lift with precision height adjustment
Digital dimension indicator
- Ø120 mm spindle with 4 cutters (Sharpened, mounted, and adjusted during servicing)
- Helical infeed pressure rollers / smooth rubber outfeed rollers

OTHER FEATURES:
- General machine power supply: 400V, three-phase, 50 Hz, rated current 11A
- Manual star-delta start
- Main motor: 5.5 kW (7.5 hp)
- Suction port: Ø150 mm for hose
Recommended suction flow rate: 1600 m³/h, speed: 20 m/sec
- CE marking, lockable disconnect switch, front/reverse emergency stop buttons, 10-second total stop
Dimensions (W x D x H): 1.40 x 1.00 x 1.30 m
Weight: 980 kg
