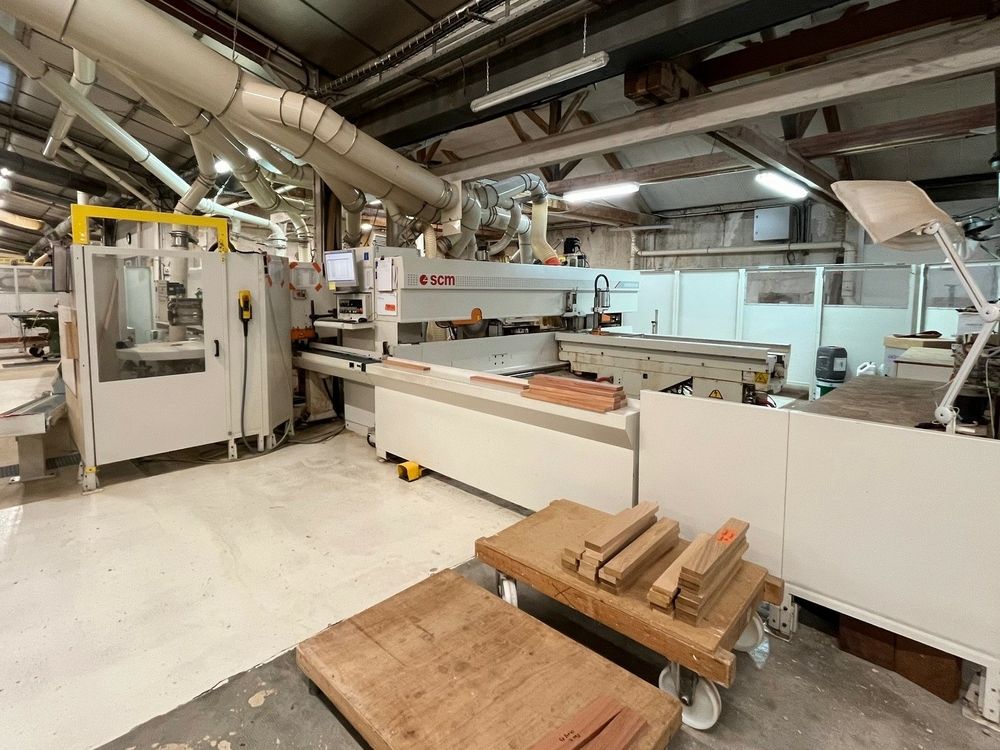

SCM WINDOR 60

Angular machining center for the production of wood, wood/aluminum and old-style windows
Up to 15 windows/day
Maximum machinable length (with stop referencing): 3200 mm
Minimum length (inside tenon): 200 mm

Max. part height: 130 mm
Min. part height: 30 mm
Max. machining width: 200 mm
Min. width: 30 mm

Depth with max. tenoning diameter 320 mm: 110 mm
Tenoning carriage speed: 0 to 100 m/min
Profiling speed: 4 to 20 m/min
Profiling table height: 850 mm
Roller diameter for profiling: 110 mm
Roller spacing for profiling: 150 mm

COMPOSITION :
1) Tenoning unit (right side) :
End cutting unit
Motor power: 4 kW (5.5 hp)
Shaft diameter: 40 mm
Max. tool diameter 400 mm

1st tenoning spindle moulder
Motor power: 11 kW (15 hp)
Shaft diameter: 50 mm
Shaft length: 620 mm
Max. tool diameter 320 mm
Jolly automatic flake guard

Power 2000 F1: electrospindle with HSK 63F tool holder
Motor power: 8 kW (11 hp)
Vector rotary axis for 360° electrospindle rotation
Automatic tool changer
Number of tools on changer: 24

2nd tennoner
Motor power: 11 kW (15 hp)
Shaft diameter: 50 mm
Shaft length: 620 mm
Max. tool diameter 320 mm
Jolly automatic splinter guard

2) Profiling unit (left side) :
Power 2000 F1: electrospindle with HSK 63F tool mounting
Motor power: 12 kW (16 hp)
Vector rotary axis for 360° electrospindle rotation
Automatic tool changer
Number of tools on changer: 24
Max. tool diameter: 230 mm

1st profile router (TL62)
Motor power: 11 kW (15 hp)
Shaft diameter: 50 mm
Shaft length: 620 mm
Min-max tool diameter: 130 to 250 mm

2nd profiling router (TL62)
Motor power: 11 kW (15 hp)
Shaft diameter: 50 mm
Shaft length: 620 mm
Min. tool diameter: 130 to 250 mm

Lower horizontal shaft
Motor power: 3 kW (4 hp)
Shaft diameter: 40 mm
Shaft length: 130 mm
Min. tool diameter: 170 to 220 mm

Glazing bead recovery unit
Motor power: 3 kW (4 hp)
Shaft diameter: 30 mm
Shaft length: 30 mm
Max. tool width: 22 mm
Bead extractor
