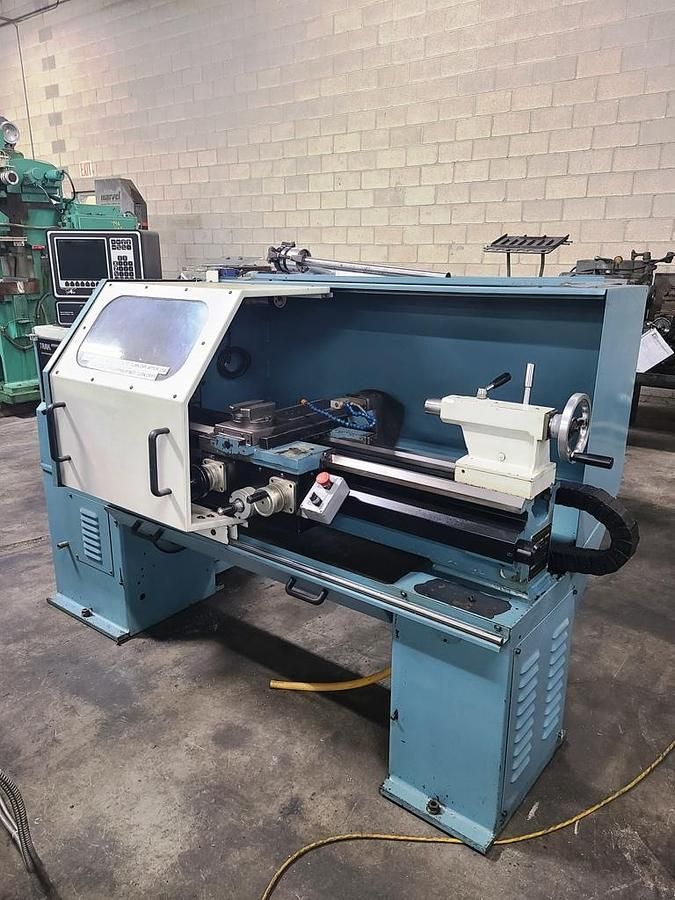

Southwestern Industries Proto Trak LX2 2400 RPM TRAK TRL1440P 2 Axis

Swing Over Bed: 14"
Swing Over Saddle: 13-3/16"
Swing Over Cross Slide: 7-13/16"
Distance Between Centers: 40"
Cross Slide Travel: 8"
Bed Width: 10"
Bed Height: 10-1/4"
Spindle Nose: D1-5 Camlock
Spindle Through Hole: 1-5/8"
Spindle Speed Range: 35 to 2400 RPM (18 speeds)
Tailstock Quill Travel: 5-1/2"
Quill Diameter: 1-7/8"
Quill Taper: #3 Morse
Control: Proto Trak LX2
Feature: Electric Hand Wheels
Feature: Collet Tube
Chuck: 8" 4 Jaw Bison Chuck
Motor: 4.5 HP
Power Supply: Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 84" LR x 48" FB x 60" High
