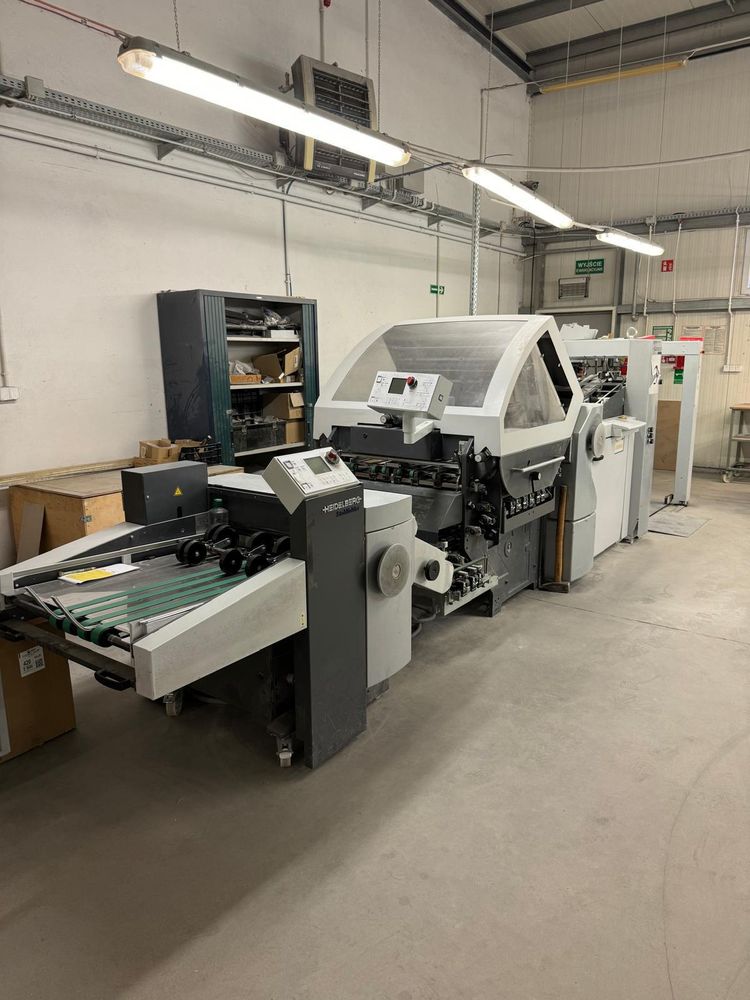

Stahl KH 78/82-4 KTLL
EUROPE (Western and Northern)
KH 78/82-4 KTLL for 32 pages
4 folds (1 cassette, 2 knife, 3 knife, 4th mobile VFZ 52 knife)
additional window fold (additional side cassette)
Mobile knife VFZ 52
1 gluing machine
SPH- 70 delivery
Pallet feeder PFH
1st station, entry width 78 cm, 4 cassettes with High Performance
Kit (Sheet feed control for 1st station with photocellat entry and exit from the station
CE safety kit (sound absorbing covers, EMV filter, safety devices) for KH-4 combined machines andfeeder
Knife cross folds in KTLL "Compact" arrangement (equipping the knife shafts after parallel fold with a transport roller system from TH machines without a separateknife holder.
Thanks to this the knife can be replaced without dismantling the knife shaft) including a separate switch when using cutting tools,
with stepless adjustment of the knife inclination and height.
External, precise adjustment of the lateral stops and rollers transport.
Control panel with display, electronic make-ready mode, optimisation of the gap between sheets, improved sheet feed control.
Pneumatic, window fold cassette, width 82 cm, with ACC 2.4 control and Hobby compressor
Gluing device for the first station, with ACC 2.4 control, with preparation, one gluing head and Hobby compressor
SPH 70 stream lining with pressing
