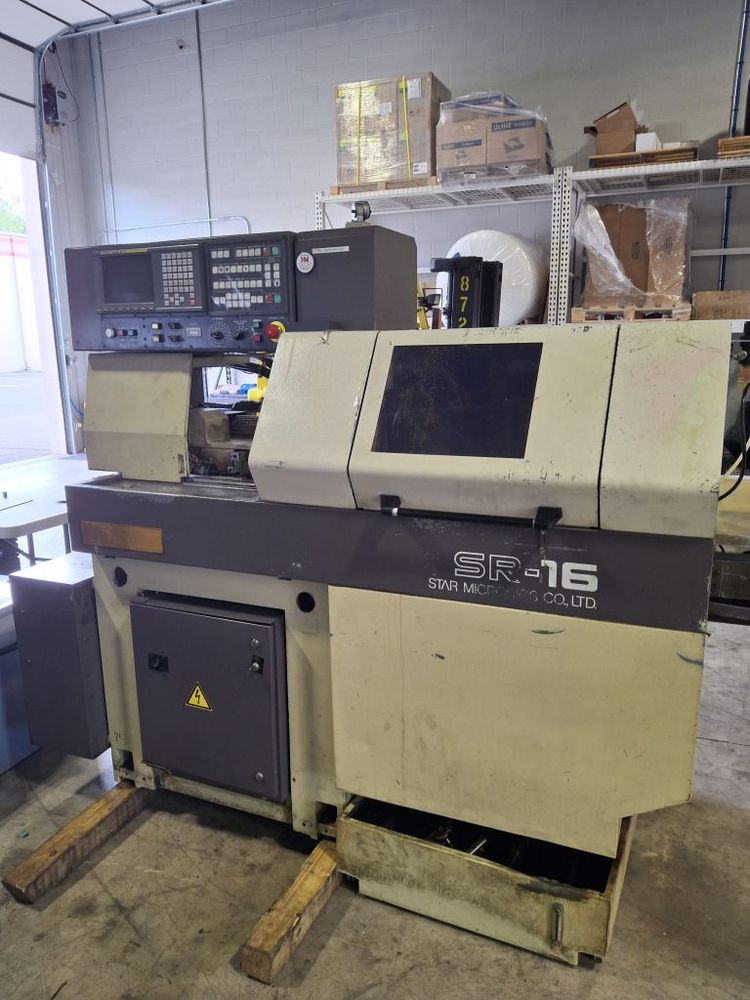

Star CNC CONTROL Variable Speed SR-16 2 Axis

Max. turning diameter16 mm
Max. headstock stroke205 mm
Max. drilling capacity (stationary tool)8 mm
Max. drilling capacity (power-driven attachment)5 mm
Max. tapping capacity (stationary tool)M8 × P1.25
Max. tapping capacity (power-driven attachment)M5 × P0.8
Max. milling capacity10 mm
Max. die cutting capacityM8 × P1.25
Max. slotting capacity1.5 mm × 4 mm
Main spindle speed500 – 10,000 rpm
Sub spindle speed400 – 8,000 rpm
Main spindle motor2.2 kW (continuous) / 3.7 kW (30 min)
Main spindle bore20 mm
Number of tools5 tools + 3 power-driven tools
Tool shank size12 × 95 – 120 mm / 12.7 × 95 – 120 mm
Power-driven attachment (cross milling)350 – 5,000 rpm
Power-driven attachment (slotting)60 – 900 rpm
Power-driven attachment motor0.4 kW
Servo motorAll axes absolute pulse coder
Main spindle center height1,060 mm
3-spindle endworking attachment3 tools
3-spindle endworking attachment max drilling8 mm
3-spindle endworking attachment max tappingM8 × P1.25
3-spindle endworking attachment max die cuttingM8 × P1.25
Coolant tank capacity100 L
Hydraulic tank capacity20 L
Hydraulic pump motor0.75 kW
Coolant motor0.18 kW
Power consumption5.0 KVA
Machine dimensions (L × W × H)2,200 × 1,255 × 1,735 mm
Machine weight1,700 kg
