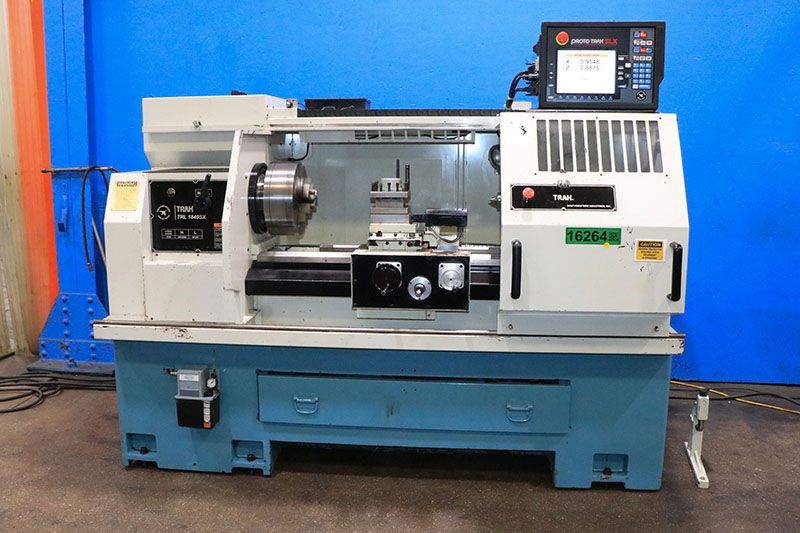

Southwestern Industries Prototrak SLX CNC control 2500 rpm TRAK 1840 2 Axis

X-axis travel 13"
Z-axis travel 40"
Control Southwestern Industries Prototrak SLX CNC control
Swing over bed 18.5"
Swing over cross slide 9"
Swing over saddle wings 17"
Max distance between centers 40.2"
Spindle speed range 50–2500 rpm
Spindle bore 2.36"
Spindle taper D1-6
Taper in headstock spindle #6 MT
Taper in headstock spindle reduction sleeve #4 MT
Tailstock quill travel 6.3"
Tailstock quill diameter 2.95"
Tailstock quill taper hole #5 MT
Spindle drive motor 10 hp
Approx weight 4,500 lbs
Approx dimensions 94" x 53" x 70"

FEATURES / EQUIPMENT
Two-axis digital readout during manual operation
Constant surface speed
Programmable spindle speeds
Servo motors
Ground ballscrews
AC spindle drive
Electronic handwheels for X and Z manual traverse
Joystick for rapid travel jog
Unlimited number of thread pitches
Up to 10 leads
Star programmable four-position turret
12" scroll chuck with 3 jaws
Hardened and ground bed ways
Automatic lubrication system
Coolant system
