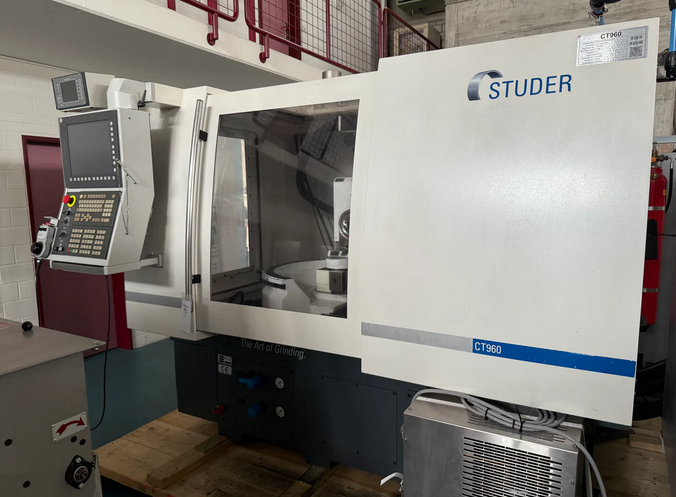

Studer CT 960

Center Height 150 mm
Grinding Length 150 mm
Z Axis Travel 400 mm
X Axis Travel 400 mm
Grinding Wheel Diameter 250 mm
B-Axis Swivelling Range +61 / -91°
Turret Spindles 4

Grinding Spindle Speeds 6000 t/min
Grinding Spindle Speeds 45000 t/min
Grinding Spindle Speeds 60000 t/min
Grinding Spindle Speeds 90000 t/min
Rotatable Grinding Spindle Head -5 / +275°

Spindle Hole 35 mm
Taper in Spindle MT 5
X Axis Feed 12 m/min
Z Axis Feed 12 m/min
Air Supply 6–10 bar
Voltage 3×400 V 50 Hz
Total Power 34 kVA
Machine Weight 4050 kg
Machine Length 3218 mm
Machine Width 2256 mm
Machine Height 2300 mm
Coolant System
Measuring Feeler Gauge
Diamond Redresser
Spindle Cooling
Flanges for Internal Grinding
Tool Holders
3-Jaw Chucks Ø100 / Ø125 / Ø160
Hard Jaws Set
Soft Jaws Set
Lamp
Tool Cabinet
Magnetic Chucks Ø125 / Ø300
Service Tools Set
Fire Extinguishing System
Three-Jaw Bezel Folds Open
Switch Cabinet Air Conditioner
Electronic Handwheel
External Grinding Spindle 6000 t/min
Collets Set
Calibration Accessories
